GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.
Features
- Transforms your vehicle into a mobile workstation with highly adjustable RAM® components and enabled by GDS® Tech™ peripherals

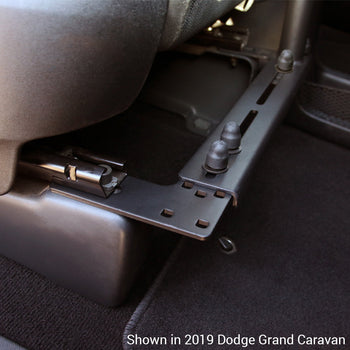

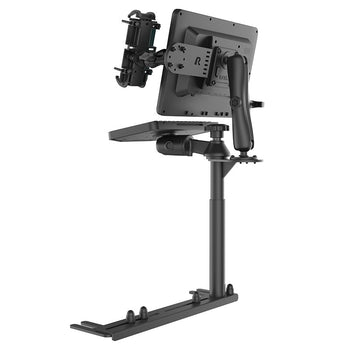

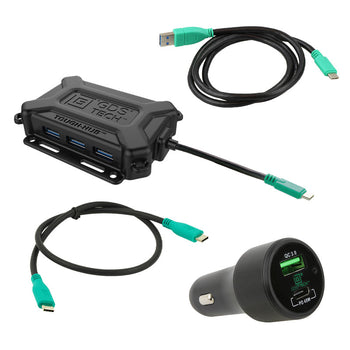

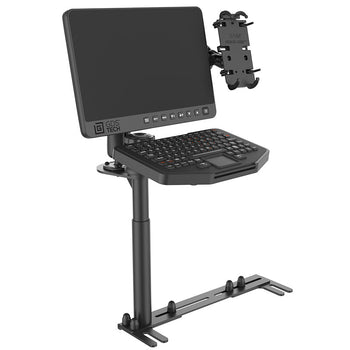

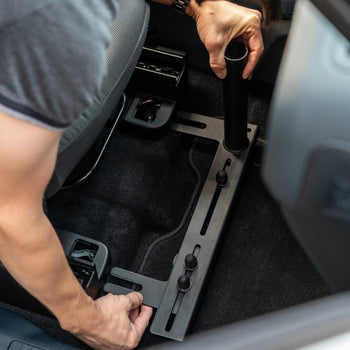

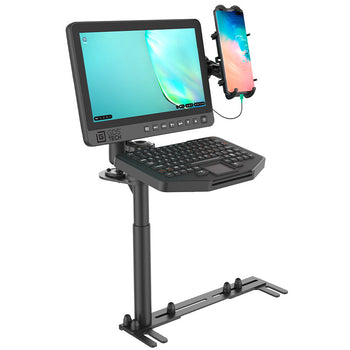

- Includes RAM® No-Drill™ Universal Vehicle Base and tele-pole swing arm system, GDS® View™ 13.3" touch screen monitor, GDS® Keyboard™, RAM® Quick-Grip™ Phone Mount, display bracket, GDS® Tough-Hub™, CLA charger, and USB Type-C Cables
- Compatible with Samsung DeX

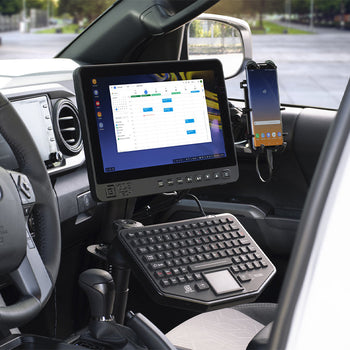

All the benefits of the GDS® Ecosystem™ in one mounting system to create your very own mobile workstation. Centralized around the GDS® View™ 13.3" touch screen monitor, the GDS® Ecosystem™ Vehicle Bundle is mounted on the universal RAM® No-Drill™ vehicle base and tele-pole swing arm system, accompanied by the GDS® Keyboard™ with trackpad, display bracket, RAM® Quick-Grip™ XL phone mount, the GDS® Tough-Hub™, charging accessories and USB Type-C extension cable. This all-in-one mobile workstation is highly adjustable and supports add-on peripherals for a more customized workstation. Take advantage of this vehicle mount bundle to enable Samsung DeX In-Vehicle by placing your DeX compatible phone into the RAM® Quick-Grip™ XL and plugging your DeX Cable directly into the GDS® View™ Monitor.
Components
hardware included
Assembly Hardware
(1) HDMI Cable
(1) VGA Cable
(1) USB Type-B to USB Type-A Cable
Hardwire & CLA chargers for monitor
USB Type-C cable & CLA charger for hub & phone
holder dimensions
For Phone Holder:
Height Range: 5.75" - 8.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"
monitor specifications
Screen Size: 13.3"
Anti-glare and Anti-fingerprint treatment applied on LCD
Max Resolution: 1920 x 1080 high resolution
Aspect ratio: 16:9
Tough Panel: 2-point capacitive touch
Audio: (2) 2W Speakers
Brightness: 800nits
Contrast ratio: 1000:1
Red monochrome night mode to reduce eye strain for night viewing
Control buttons on front of monitor for easy access
Zip tie attachment loops for cable management
materials
Powder coated steel
Marine grade-aluminium
High strength composite
packaging type
Box
input voltage
Monitor: 10-30V DC
CLA Charger for Hub: 12-24V DC
power output
63W Total (45W for Type-C & 18W for Type-A)
output current
6A max
operating temperature
-10°C to +50°C
storage temperature
0°C to +45°C
ports
CLA Charger:
(1) Type-C Female (PD)
(1) Type-A Female (QC 3.0)

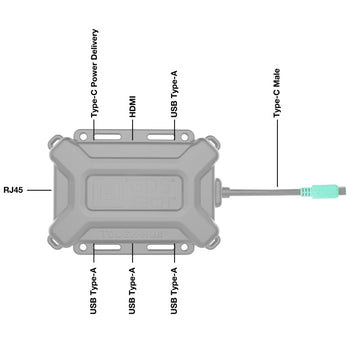

GDS® Tough-Hub™:
(4) USB Type A Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A)
(1) RJ45 Port - Supports 10/100/1000Mbps bandwidth
(1) HDMI Port - Resolution up to 4Kx2K@30Hz
(1) USB Type-C Port - Supports data and PD charging 100W (20V/5A))
GDS® View™ Monitor:
(1) Power Input
(1) HDMI
(1) VGA
(1) 3.5mm Audio Output
(1) USB Type-B (Host Input)
(3) USB Type-A (Peripheral Outputs)
regulatory
Meets SAE J-1113
Integrated Short Circuit Protection (SCP)
certifications
MIL-STD-810H 514.5 Vibration Tested
FCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHS
Weight
12.273 kg
