GDS® Type-C and Type A 2-Port Cigarette Charger
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features
- Two-port GDS® USB Type-C and USB Type-A cigarette charger; total output of 48W max
- USB Type-C port utilizes full 30W power delivery; built-in safeguards protect against over-current
- Supports PPS and PD3.0
- Backed by a 3-year warranty

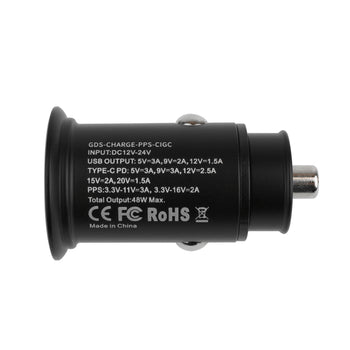

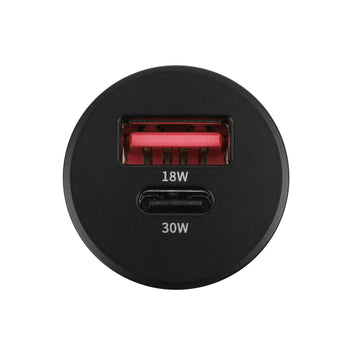

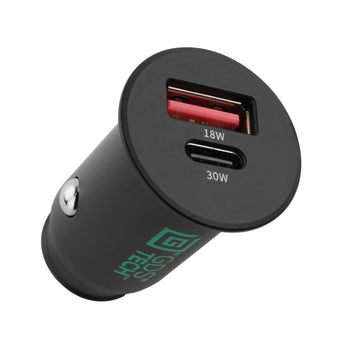

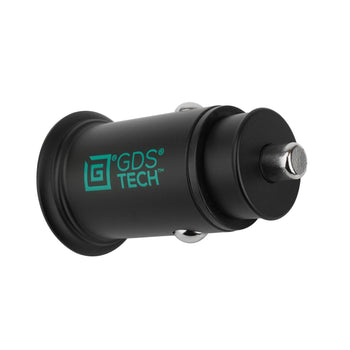

This two-port GDS® USB Type-C and USB Type-A cigarette charger (RAM-GDS-CHARGE-PPS-CIGC) allows for charging two devices simultaneously. The USB Type-A port takes advantage of Qualcomm® Quick Charge™ 3.0 for compatible devices. With the USB Type-C port, utilize full 30W power delivery. To prevent overcharging and overheating, multiple built-in safeguards protect against over-current. The updated low-profile design now fits more flush in the vehicle’s charging socket, along with support of PPS and PD3.0 for better support for iPads and dynamic PD support. Always Protected. Always Connected.®
packaging type

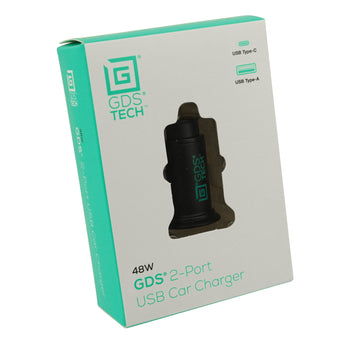

Retail Box
input voltage
12-24VDC
power output
48W Total (30W for Type-C & 18W for Type-A)
output current
3A max
operating temperature
-10°C to +50°C
storage temperature
-20°C to +70°C
ports
(1) Type-C Female (PD)
(1) Type-A Female (QC 3.0)
regulatory
Short Circuit Protection, Over Voltage Protection, Over Current Protection & Over Temperature Protection
certifications
FCC, Industry Canada, CE, RoHS, WEEE
Warranty
3 year warranty
Weight
0.055 kg
