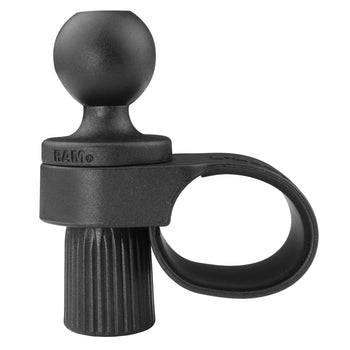

RAM® Tough-Strap™ Handlebar Ball Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features

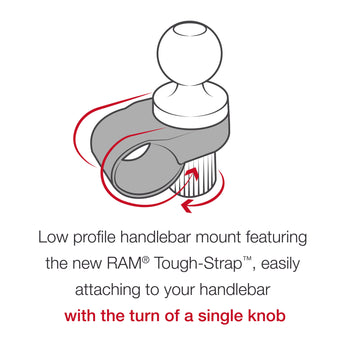

- Low profile handlebar mount featuring the new RAM® Tough-Strap™, easily attaching to your handlebar with the turn of a single knob
- Includes two different strap sizes for handlebars; Long strap ranges from 1.25"-1.38" diameter and small strap ranges from 0.875"-1" diameter, with an extra rubber strap for a more custom fit ranging from 1"-1.25"

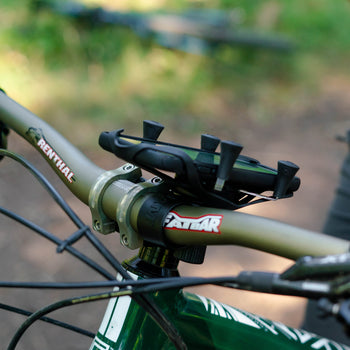

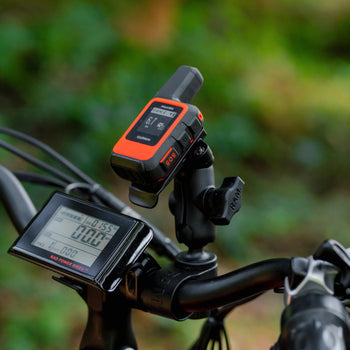

- Attach any RAM® B size socket arm and desired device holder for an ideal handlebar mount for all bike types, including mountain bikes, road bikes and e-bikes
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
The RAM® Tough-Strap™ is lowest profile rugged mounting solution for any bike or motorcycle handlebars. With two different size straps, easily install the RAM® Tough-Strap™ on any mountain bike, road bike or e-bike with a simple twist of a knob. This RAM® Tough-Strap™ Handlebar Mount includes a B size ball base so you can attach any RAM® B size socket arm and your desired device holder to complete your solution. The long strap is used for bar diameters ranging from 1.25"-1.38" while the short strap is used for diameters ranging from 0.875"-1". Utilize the extra rubber strip to cut down to the diameter range of 1"-1.125" for a more custom fit. Take the RAM® Tough-Strap™ on your next adventure on and off the road.
Components
hardware included
(1) #10-24 x 2.5" Hex Bolt
(1) Long Strap
(1) Short Strap
(1) Long Rubber Strip
(1) Short Rubber Strip
(1) Tightening Knob
clamp range
0.875" - 1.38"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
High strength composite
packaging type
Poly Bag
Weight
0.1 kg
