RAM® Track Ball™ Mount with 1/4"-20 Action Camera Adapter

Part#: RAP-B-366-153-354-TRA1U
UPC:793442955167

£29.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

You can order the individual component parts below or we'll try to offer a suitable alternative.

Swipe to see more images.

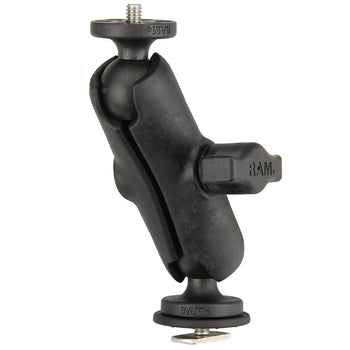

The RAP-B-366-153-354-TRA1 consists of a Track Ball™ base, composite double socket arm, and a 1" ball connected to a round plate with 1/4"-20 camera thread. This steel camera thread will connect to any standard female thread found on camcorders, digital cameras and POV cameras. This kit is compatible with virtually any track system including the RAM Tough-Track™.

hardware included

(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt

t bolt dimensions

.48" x .95"

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.155 kg
