RAM® U-Bolt Mount for Brother PocketJet Series - Long
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.

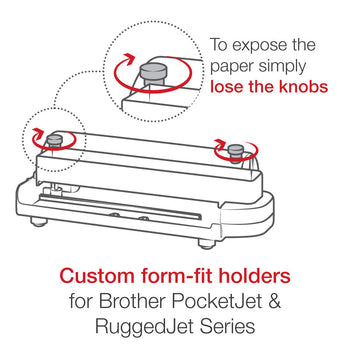

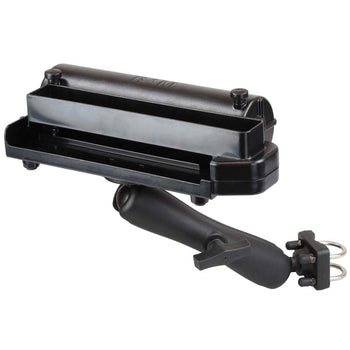

The RAM-VPR-101-D-253U is designed to hold Brother® PocketJet® 6 and 7 Series portable printers, as well as the Printek Interceptor 80 Series. A custom fit enclosure, the cradle is form fitting with no sharp edges and adds little to the overall size of the printer. Key features are full view of LED's, sight hole to check paper level, and a caddy to store pens, cell phone, paper clips, glasses and other useful items. This is a complete kit and includes C size 1.5" ball U-Bolt base, long arm and base to mount printer cradle.
Components
hardware included
Assembly Hardware

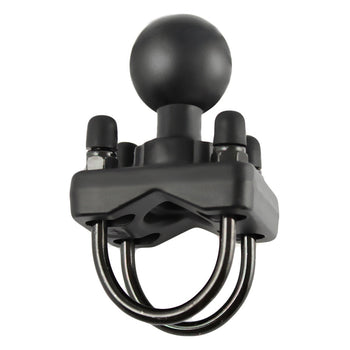

(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
clamp range
1.25" - 1.5" diameter
socket to socket length
8"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
1.568 kg
