RAM® Tele-Pole™ with 12" & 9" Poles, Double Swing Arms & Round Plate
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.
Features
- Dual articulating swing arms allows for ideal device placement
- Compatible with a variety of RAM® laptop, tablet, and other device holders
- Made of powder-coated steel and marine-grade aluminium
- Backed by a lifetime warranty

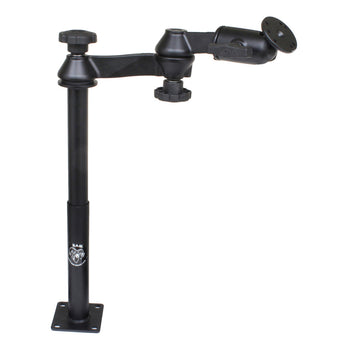

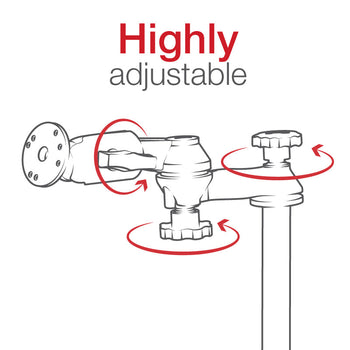

The RAM-VP-SW1-129 consists of a 9" lower female Tele-Pole™, 12" upper male Tele-Pole™, double swing arm and 2.5" round base that contains the universal AMPs hole pattern. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The double swing arm allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12".
Components
hardware included
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps
product dimensions
Minimum Height: 20.3"
Maximum Height: 25.3"
hole pattern
Tele-Pole: 2.625" x 2.625"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
plate size
Round Plate: 2.5" Diameter
Lower Pole: 3.5" x 3.5"
ball size
C Size (1.5")
materials
Powder coated steel
Marine-grade aluminium
packaging type
Poly Bag
Weight
2.886 kg
