5" Modular aluminium Black RAM® Tough-Track™
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- 5" of usable aluminium track for track mounts: overall length of 8"
- RAM® Tough-Track™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included
- Modular top-loading end caps allow for additional track extensions and 90-degree connectors

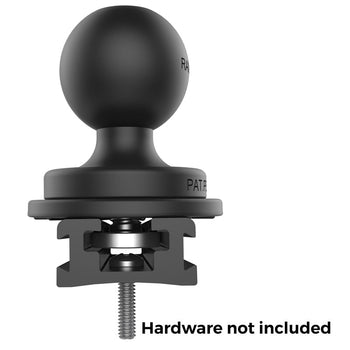

- Compatible with B and C size RAM® track bases to attach action camera mounts, fishing rods, phone mounts and tablet mounts
- Backed by a lifetime warranty

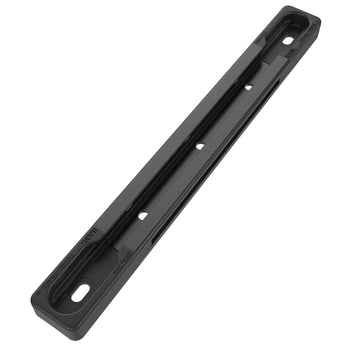

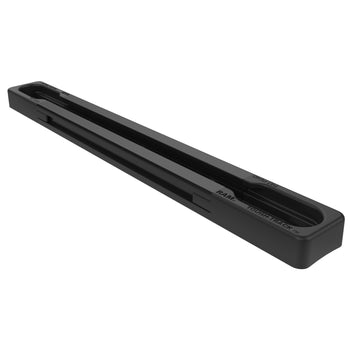

With the RAM® Tough-Track™, flat surface mounting possibilities are nearly endless for ATVs, cars, combines, motorboats, tractors, trucks, and more. The black anodized aluminium version of the RAM® Tough-Track™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included. Made to be a dependable and rugged mounting solution, the anodized aluminium provides a smooth slide across the track and anti-corrosion protection. The RAM-TRACK-EXA-5BU features 5” of usable track length (aluminium portion), while the included top-loading end caps add about 1.5” in length to each end (3” of additional length). Using the end caps allows for two installation options: either use both top-loading end caps to create insertion points on both ends of the track, or use one top-loading end cap and close the opposite end with the included flush end cap. This RAM® Tough-Track™ is compatible with the RAM® Center Loader and 90 Degree Connector, as well as a wide variety of RAM® track bases to attach devices like action cameras, fishing rods, phones, and tablets.
product dimensions
Overall Length: 8"
Overall Width: .9"
Track Thickness: .43"
Inside Track Length: 5"
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.077 kg
