GDS® Audio™ Amplified Speaker with PTT Breakout Feature
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features
- PTT-enabled amplification speaker with independent adjustable volume knob

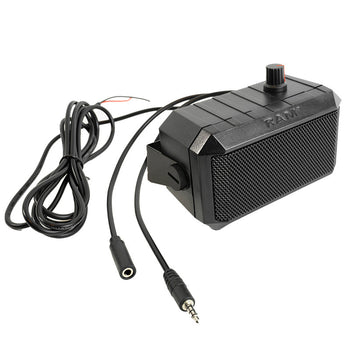

- Includes hardwire power input cable, audio input cable and audio output cable
- 99db max volume level
- Backed by a 3-year warranty

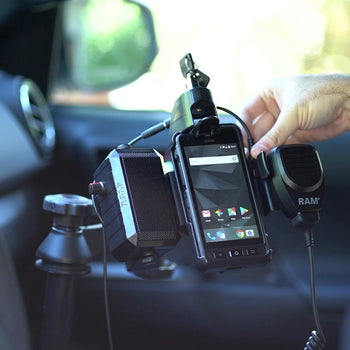

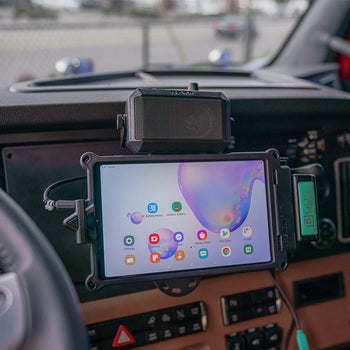

The GDS® Audio™ amplified audio breakout and speaker can be hardwired into the cab of your vehicle – with no batteries required for power. The audio breakout feature also allows for the inclusion of a PTT (push to talk) microphone (not included) or headset (not included) to enable half or full duplex conversation depending on the device and call solution being used. An adjustable knob allows for up to 99dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS® Ecosystem™, the speaker can be mounted to any GDS® vehicle dock using the RAM® short bracket adapter or RAM® standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS® vehicle dock.
hardware included
Mounting Bracket
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
speaker specifications

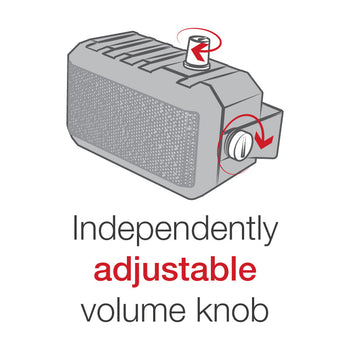

Independently adjustable volume knob
Max volume level: 99dB

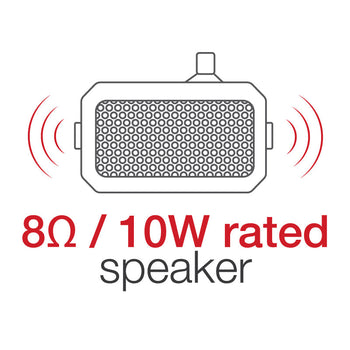

8Ω / 10W rated speaker
packaging type
Box
input voltage
9-26VDC
power output
Peak Power: 10W
RMS Power: 8W
input connector
3.5mm TRRS connector, with a modified CTIA pin map for audio in/out
input cable length
1150mm long red/black power cable
output cable length
150mm long audio cable with 3.5mm mono plug jack
operating temperature
-20°C to +80°C
storage temperature
-40°C to +85°C
regulatory
Over current protection, short circuit protection and over volatage protection
certifications
FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a
Warranty
3 year warranty
Weight
0.423 kg
