RAM® Tab-Lock™ Tablet Holder for iPad mini 1-3
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
![A chart of ball sizes](http://www.ram-mount.co.uk/cdn/shop/files/ball-arm-spec.jpg?v=1720434415&width=1200)
![](http://www.ram-mount.co.uk/cdn/shop/files/ball-arm-spec-vertical.jpg?v=1720613989&width=600)
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.
Features

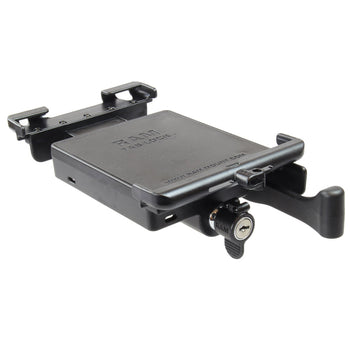

- Locking mechanism for theft deterrence
- Support cups contain open slots to accomodate for tablets of various sizes
- Back plate can support various size support cups
- Spring loaded tension provides secure support and quick release for your tablet
- Backed by a lifetime warranty

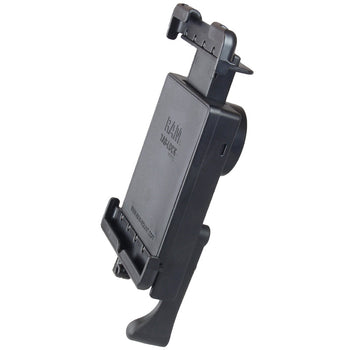

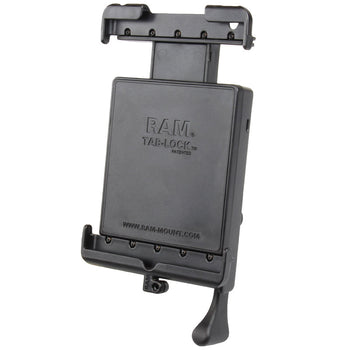

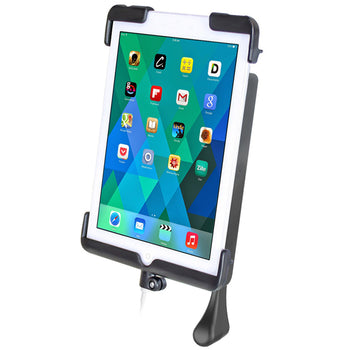

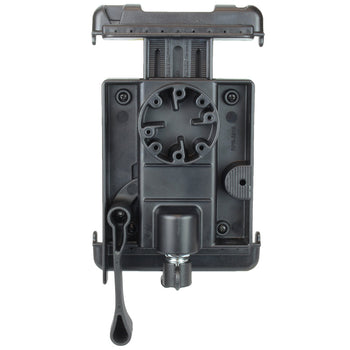

The RAM-HOL-TABL11U consists of a spring loaded backplate, custom support cups and locking mechanism for the iPad mini WITHOUT skin, sleeve or case. This spring loaded design makes it easy to load and unload your iPad mini, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your iPad mini can be used just as it was intended. Quickly lock the cradle, keeping your iPad mini secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet.
hardware included
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys
(1) #4-40 x 3/8" Machine Screw
(1) #4-40 Nylock Nut
holder dimensions
Height Range: 6.8" - 10.55"
Width Range: 5.06" - 5.31"
Max Depth: .3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
Weight
0.52 kg
