RAM® Tab-Tite™ End Cups for Panasonic Toughpad™ FZ-A1 with Case
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.

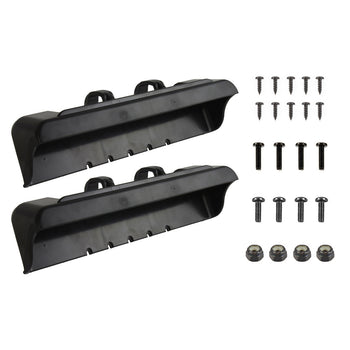

The RAM-HOL-TAB9-CUPSU includes (2 qty) Tab-Tite™ cup ends and hardware. The interchangeable support cups can be used, along with all RAM Tab-Tite™ and Tab-Lock™ mounts; these include the universal backplate that support all TAB cups. Hardware is included to attach the cup ends to the backplate.
hardware included
(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
holder dimensions
Height Range: 10.625" - 12.625"
Width Range: 6.38" - 9.25"
Depth Range: .13" - 2"
materials
High strength composite
packaging type
Poly Bag
Weight
0.265 kg
