RAM® Tab-Tite™ End Cups for 7-8" Tablets
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Features
- Interchangeable RAM® Tab-Tite™ end cups support the Panasonic Toughpad FZ-G1
- Included hardware allows for easy attachment to RAM® Tab-Lock™ and RAM® Tab-Tite™ backplates
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

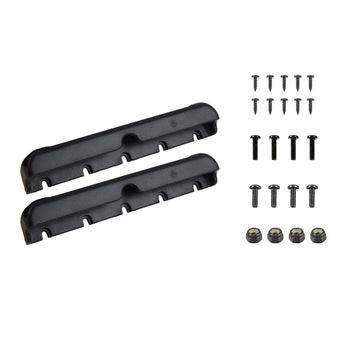

The RAM-HOL-TAB18-CUPSU includes (2 qty) Tab-Tite™ cup ends and hardware. The interchangeable support cups can be used, along with all RAM Tab-Tite™ and Tab-Lock™ mounts; these include the universal backplate that support all TAB cups. Hardware is included to attach the cup ends to the backplate. The Tab-Tite™ cradle end cups are compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
hardware included
(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
holder dimensions
Height Range: 7.5" - 10.125"
Width Range: 3.75" - 4.7"
Depth Range: .13" - .43"
materials
High strength composite
packaging type
Poly Bag
Weight
0.073 kg
