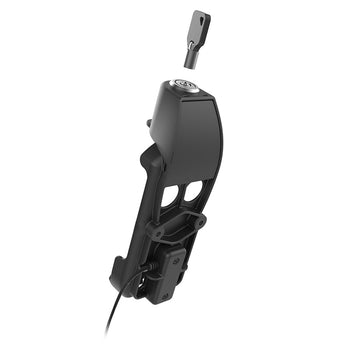

RAM® EZ-Roll'r™ Powered Locking Dock for Sonim XP5s
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features

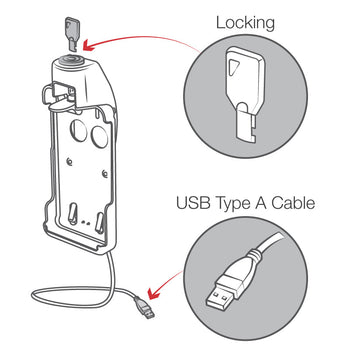

- Spring-loaded, powered RAM® EZ-Roll'r™ style form-fit cradle for the Sonim XP5s provides a perfect fit for your device without a case while keeping the device charged
- Key lock for theft deterrence
- Single-handed docking and removal of device
- Compatible with B and C size RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty

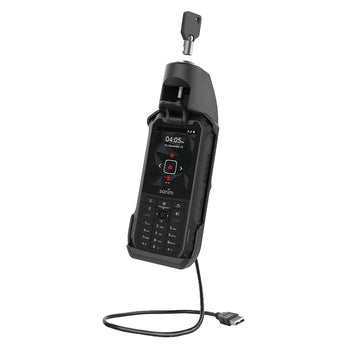

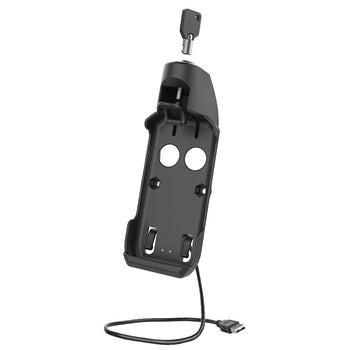

The RAM® EZ-Roll'r™ Powered Key Locking Cradle for Sonim XP5s secures your device in a form-fit holder while keeping the entire screen and buttons visible and accessible. This powered cradle features two integrated pogo pins that provide charging capabilities to the device through male USB Type-A connector, and includes key lock for extra security and peace of mind. Single-handed operation makes it easy to dock and remove the Sonim XP5s—simply lift the top lever and pull out the device, or place bottom portion of the device in first and push in to lock in place. Compatible with RAM® two-hole AMPS pattern bases and RAM® microphone brackets, this RAM® form-fit cradle easily connects to B and C size ball mounts for use in a wide variety of applications.
Components
hardware included
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(2) Keys
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input cable length
1.25 Meters
regulatory
Made from ABS-V0 that conforms to UL 94-V0 flammability tests
Warranty
3 year warranty
Weight
0.251 kg
