RAM® Locking USB-C Powered Dock + USB-C & USB-A Data for Tab Active4 Pro
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features
- Key locking powered dock supports the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector
- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A and USB-C connector
- RAM® Mounts Compatible™ with AMPS 4-hole pattern components
- Made of high-strength composite materials for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

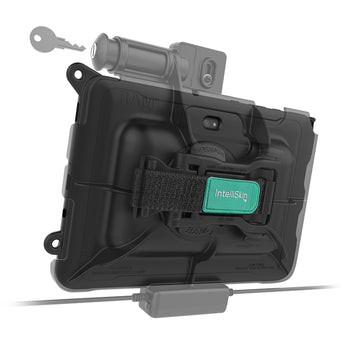

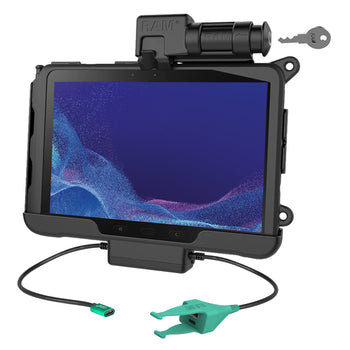

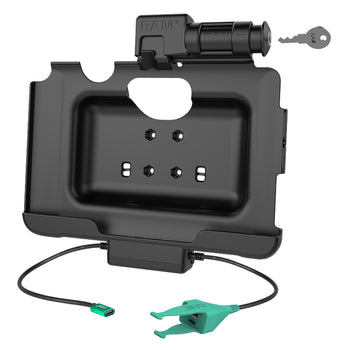

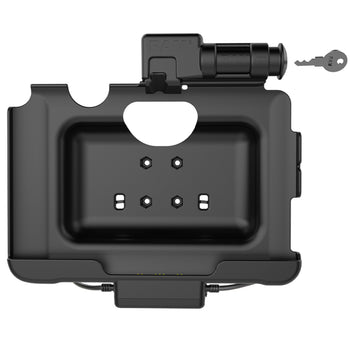

The RAM® Locking USB-C Powered Dock + USB-C & USB-A Data for Tab Active4 Pro (RAM-HOL-SAM57CPKL-CAU) is designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a key-lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the dual USB Type-C and Type-A female pigtail, cable clamp, and zip ties.
Components
hardware included
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(6) Small Cable Ties

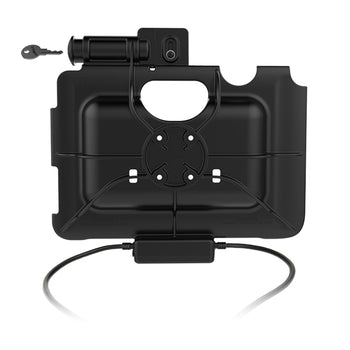

hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
output connector
(1) USB-C Female
(1)USB-A Female
output cable length
215mm
peripheral output
900mAh (per port)
transfer speed
480Mbps
Warranty
3 year warranty
Weight
0.615 kg
