RAM® Form-Fit Holder for Getac ZX70 - Temp Module Compatible
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features

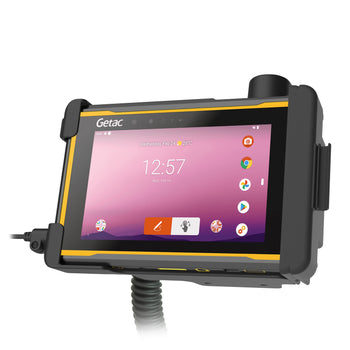

- RAM® Form-Fit holder provides a secure fit for the Getac ZX70 rugged tablet
- Holder features compatibility with GDS® Hardware Chargers, Temperature Control module, and Getac Hand Strap & Kickstand
- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Includes 2-hole side bracket for mounting additional devices such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a lifetime warranty

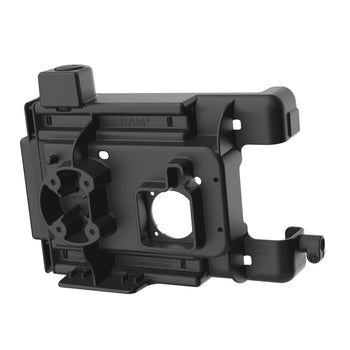

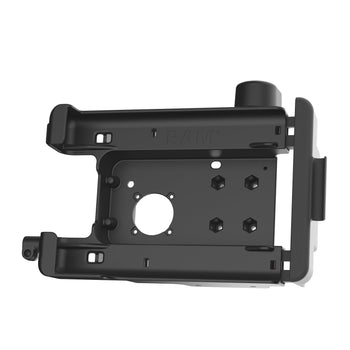

The RAM® Form-Fit Holder for Getac ZX70 - Temp Module Compatible (RAM-HOL-GE3FU) is a spring-loaded, quick release holder that allows you to keep the device secured in a variety of applications. This holder is designed to ensure all ports on the device are accessible for peripheral support. This passive holder is compatible with two RAM® hardware chargers to enable power—RAM-GDS-CHARGE-V9U and RAM-GDS-CHARGE-V10U. It is also designed to support the RAM® Temperature Module accessories while maintaining compatibility with the Getac Rotating Hand Strap & Kickstand. Take the solution a step further by taking advantage of the included 2-hole side bracket compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device.
hardware included
(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(2) #8 x 3/4” Sheet Metal Screws
(4) #4-40 x 1/2" Machine Screws
(4) #4-40 Nylock Nuts
(8) Small Cable Ties
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
certifications
RoHS, WEEE
Weight
0.584 kg
