Locking GDS® Cool-Dock™ for Samsung Tab A7 10.4
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features

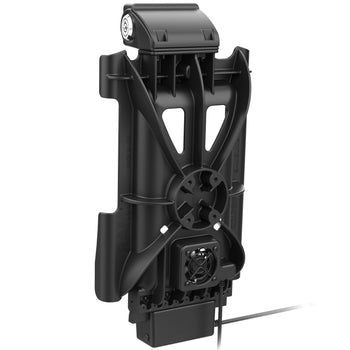

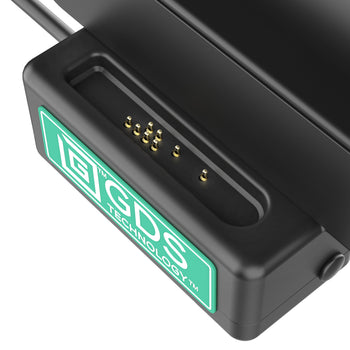

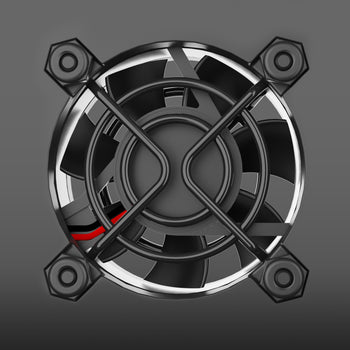

- Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging; Includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation
- Designed specifically for the Samsung Galaxy Tab A7 10.4 (SM-T500 & SM-T505) wrapped in an IntelliSkin® Next Gen protective sleeve
- Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty

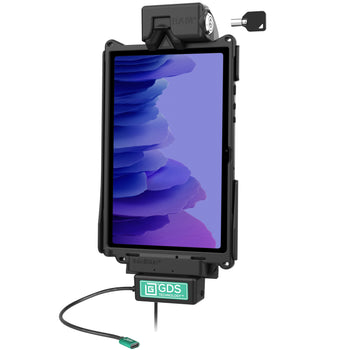

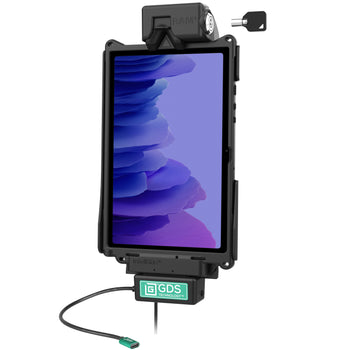

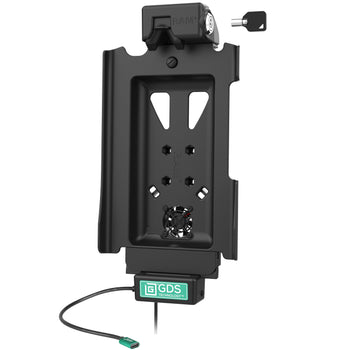

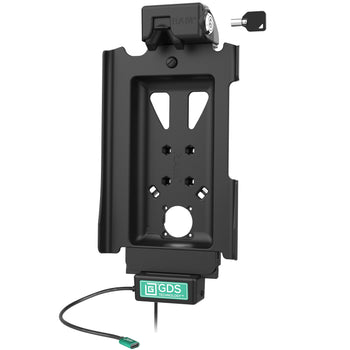

The GDS® Cool-Dock™ is the upgraded version of the GDS® Tough-Dock™ including a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire power cord and a keyed locking system. The GDS® Cool-Dock™ is the turnkey vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Samsung Galaxy Tab A7 10.4 (SM-T500 & SM-T505) in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a Type-C power connector, the GDS® Cool-Dock™ supports data syncing and charging capabilities for the Samsung Galaxy Tab A7 10.4 (SM-T500 & SM-T505). The GDS® Cool-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Cool-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys
(1) USB Type-C to Type-A Cable
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A
power output
15W
input connector
USB Type-C
input cable length
215mm
Warranty
3 year warranty
Weight
0.8 kg
