GDS® Power + Single USB-A Dock Cup for IntelliSkin® Next Gen Tablets

Part#: RAM-GDS-DOCK-V10PDU
UPC:793442012242Patented & Pats. Pend.

£117.99 (Incl. VAT)

Variants

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

.

Swipe to see more images.

Features

  • Upgrade your existing GDS® vehicle dock to enable high speed charging capabilities for devices using IntelliSkin® Next Generation sleeves, using an 8-pin connection
  • Power delivered via USB-C connector; connect a single input device via USB-A connector
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

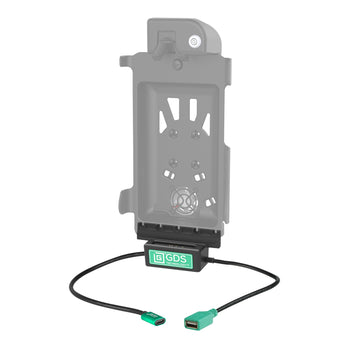

This GDS® vehicle dock bottom cup is designed specifically to support IntelliSkin® Next Generation-enabled devices, and features 8 pogo pins and a USB Type-C pigtail. This dock up also includes an additional USB Type-A cable for connecting a keyboard, scanner or other peripheral to your tablet. When paired with the proper top cup, it can be used to upgrade your existing GDS® vehicle dock. Always Protected. Always Connected.®

Overview

materials

High strength composite

packaging type

Poly Bag

output voltage

Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
Peripheral: 5V @ 900mA max

power output

15W

input connector

USB Type-C
USB Type A for 1 Peripheral

input cable length

215mm

output cable length

215mm

peripheral output

500mAh

Warranty

3 year warranty

Weight

0.148 kg
