GDS® Uni-Conn™ Powered Snap-In Dock with USB-C Connector

Part#: RAM-GDS-DOCK-U3CPU
UPC:793442022654Patented & Pats. Pend.

£62.99 (Incl. VAT)

Variants

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

.

Swipe to see more images.

Features

  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • USB Type-C female connector enables high-speed charging capabilities
  • Backed by a 3-year warranty

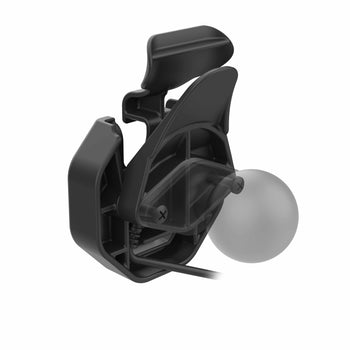

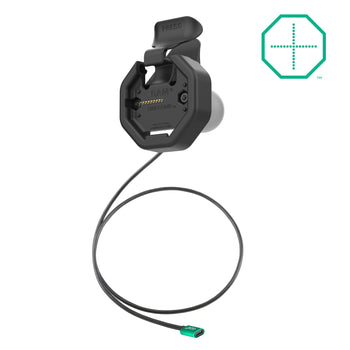

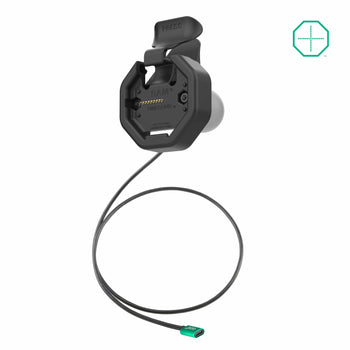

The GDS® Uni-Conn™ Powered Snap-In Dock with USB-C Connector (RAM-GDS-DOCK-U3CPU) is a versatile snap-in docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with rear pogo pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the USB-C connector. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. One Dock to Connect Them All™ Always Protected. Always Connected.®

Overview

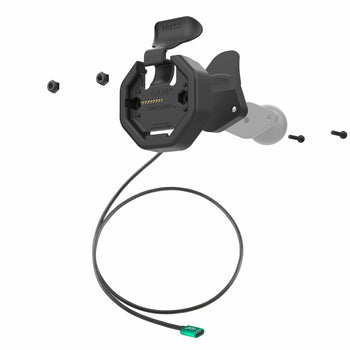

hardware included

(1) Lever Stop
(2) #8-32 x 1.125" Machine Screws
(2) #8-32 Nylock Nuts

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

output voltage

USB-C Tablets: 5V - 20V @ 3A Max
mUSB Tablets: 9V @ 1.67A Max

power output

60W Max

input connector

USB Type-C (Female)

input cable length

800mm

Warranty

3 year warranty

Weight

0.148 kg

Additional Information

The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.
