GDS® Uni-Conn™ Powered Dock
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features

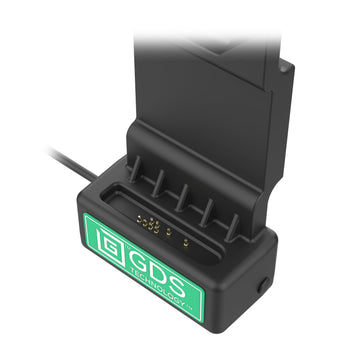

- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging

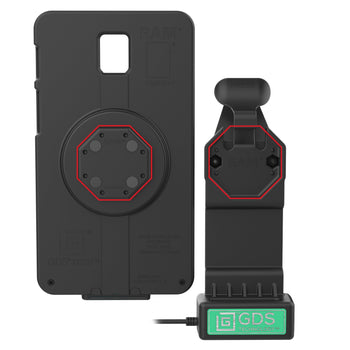

- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- USB Type-C Female connector provides high-speed charging to the dock
- RAM® Mounts Compatible™
- Backed by a 3-year warranty

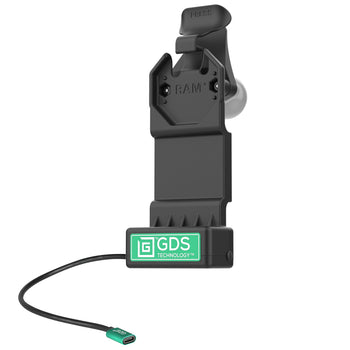

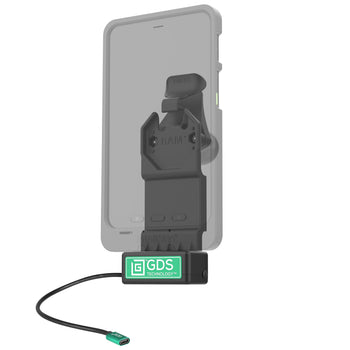

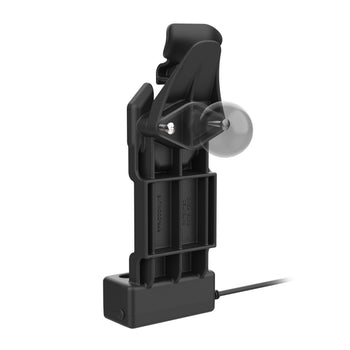

The GDS® Uni-Conn™ Powered Dock (RAM-GDS-DOCK-U1CPU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A 7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
Components
hardware included

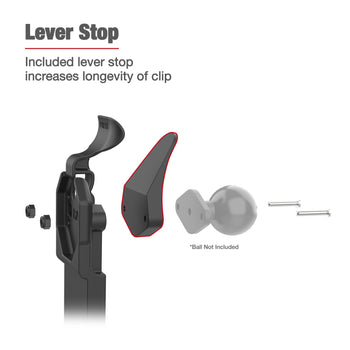

(1) Lever Stop
(2) #8-32 x 1" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit
product dimensions
Overall Width: 3.16"
Overall Height: 8.44"
Overall Depth: 3.03"
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A
power output
15W
input connector
USB Type-C
input cable length
215mm
Warranty
3 year warranty
Weight
0.239 kg
