RAM® Temp-Right™ Dock Heating Module for Zebra ET6x
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features

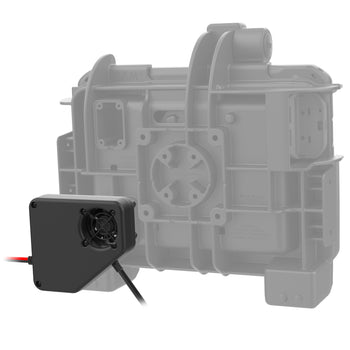

- Heater module designed specifically for the Zebra ET6x RAM® and GDS® tablet docks
- Regulates the tablet's operating temperature by generating forced heat to the back of the tablet
- Integrated thermistor detects temperature and automatically activates the heater when temps reach below approximately 32-degrees fahrenheit
- Built-in safety plunger deactivates the heater when the device is undocked
- Backed by a 3-year warranty

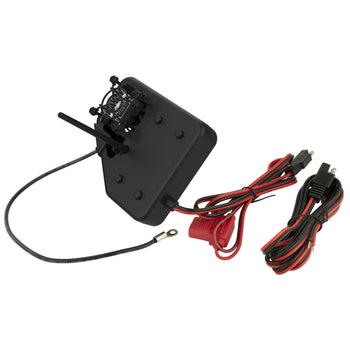

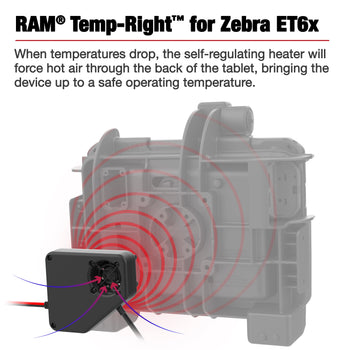

The RAM® Temp-Right™ Dock Heating Module for Zebra ET6x (RAM-DOCK-HEATER1-EU) is a self-regulating heater module available as an add-on accessory when your ET6x docking system is mounted in extremely cold environments. When installed to the dock and connected to a power source, the integrated thermistor detects when temperatures reach below 32-degrees fahrenheit, automatically activates the heater, and forces hot air throughout the back of the tablet via a 12-VDC Axial cooling fan. The heater will bring the device up to safe operating temperatures and then automatically turns off. In addition, a built-in safety plunger prevents the heater from activating when the device is undocked. Once the device is docked, it presses on the safety plunger which will activate the functionalities of the Temp-Right™. This add-on accessory was built to keep devices operable specifically in cold environments for transportation & logistics and cold storage warehousing use cases.
hardware included
Assembly Hardware
materials
High strength composite
Stainless Steel
packaging type
Poly Bag
input voltage
11-16VDC
output voltage
12V @ 7.5A
power output
85W
output current
7.5A max
input cable length
1 Meter
operating temperature
-30°C to +70°C
storage temperature
-40°C to +85°C
regulatory
WEEE and RoHS Compliant
Warranty
3 year warranty
Weight
0.323 kg
