RAM® Torque™ Large Rail Base with Universal Action Camera Adapter

Part#: RAM-B-408-112-15-A-GOP1U
UPC:793442952661Patented

£45.99 (Incl. VAT)

Variants

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

You can also order the individual component parts below.

Swipe to see more images.

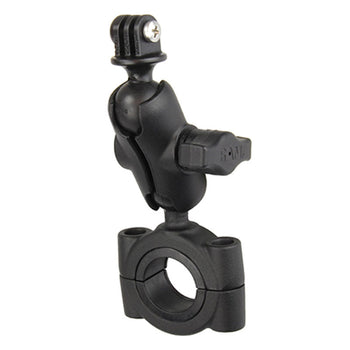

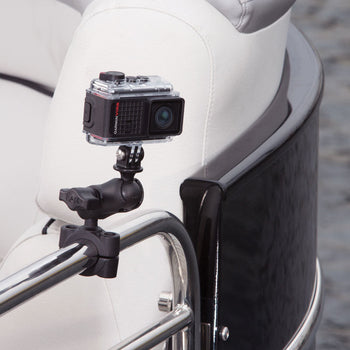

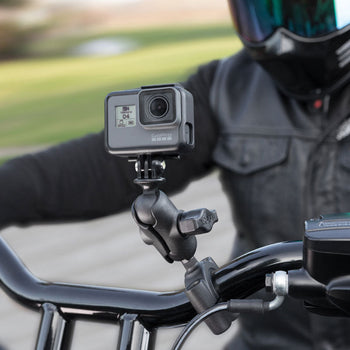

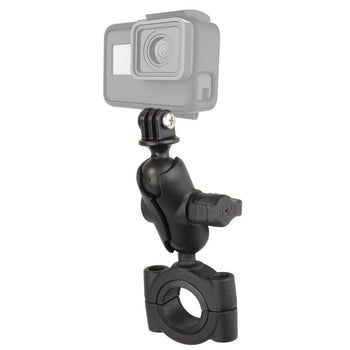

The RAM® Torque™ handlebar and rail mounting base has a 1” rubber ball and accommodates bars 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. Included is a short double socket arm and a GoPro/Action Camera mount.

Components

RAM® Action Camera Universal Ball Adapter RAP-B-202U-GOP1 £11.99
RAM® Double Socket Arm - B Size Short RAM-B-201U-A £14.99
RAM® Torque™ Large Rail Base - B Size RAM-B-408-112-15U £23.99
Overview

hardware included

Assembly Hardware
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) 1.12" Split Reducing Bushings
(2) 1.27" Split Reducing Bushings
(1) 5/32" Hex Key Wrench
(1) 127mm x 17mm Rubber Adhesive Strip

clamp range

1.125" - 1.5" diameter

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.255 kg
