RAM® Tough-Wedge™ Mount with Double Socket Arm & Expansion Pouch
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features

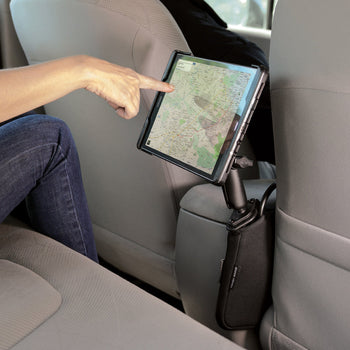

- RAM® Tough-Wedge™ fits in gap between vehicle seat and center console for ideal placement of your device
- Compatible with several RAM® device holders and cradles; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

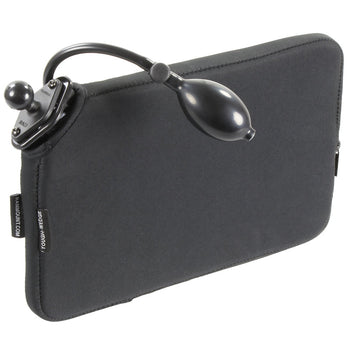

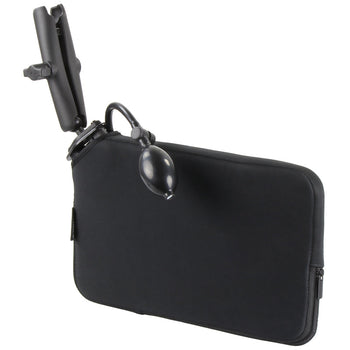

The RAM-B-407-201-C-PUMPU consists of the Tough-Wedge™ and long length double socket arm. The Tough-Wedge™ is a mount that fits in the gap between the vehicle seat and center console or potentially a center seat. This allows for easy access and operation of a mobile device. The Tough-Wedge™ can also be used for back-seat applications by inserted into the pockets located on the back of the front seats. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The long length double socket arm measures 6" and will connect to all RAM cradles/adapters with a 1" ball. Included in this kit is an innovative Expansion Pouch accessory for the RAM Tough-Wedge™. This optional accessory is designed to increase the stability of your munt by creating a more secure fit of the wedge mount into the gap between seats. The Expansion Pouch fits inside the Tough-Wedge™ sleeve and is then inflated with the hand pump to the desired level, ensuring your device stays firmly in place.
Components
hardware included
Assembly Hardware
wedge dimensions
Length: 13.25"
Height: 8.25"
Thickness: 1"
socket to socket length
5.31"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.977 kg
