RAM® X-Grip® Phone Mount with RAM® Tough-Claw™ Small Clamp Base - Medium

Part#: RAM-B-400-HOL-UN7BU
UPC:793442948664Patented & Pats. Pend.

£75.99 (Incl. VAT)

Variants

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

You can also order the individual component parts below.

Swipe to see more images.

Features

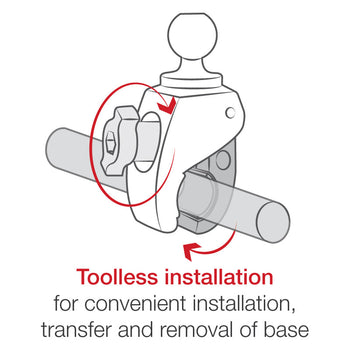

  • Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

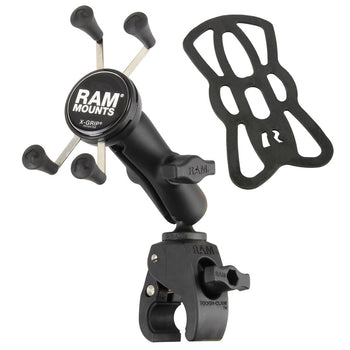

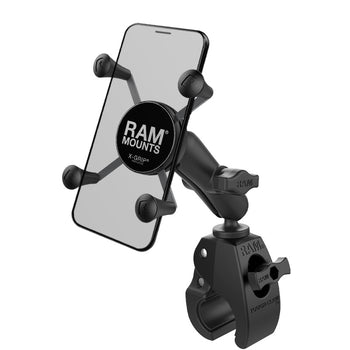

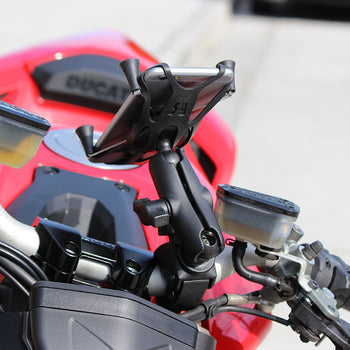

The RAM® Tough-Claw™ is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM® Tough-Claw™ includes a B size 1" rubber ball and can quickly be clamped on rails ranging from 1.87" to 3.25" in outer diameter – ideal for mounting mounting on the yoke of an aircraft, handlebars of bicycles and motorcycles, or even on kayak rails and roll bars. This kit includes a medium length double socket arm and the popular spring-loaded RAM® X-Grip® phone holder, featuring an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. The standard size version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.

hardware included

(1) Optional Tether
(1) Glue Tube for Rubber Caps

holder dimensions

Width Range: 1.875" - 3.25"
Depth Range: .875" max

clamp range

.625" - 1.14" diameter

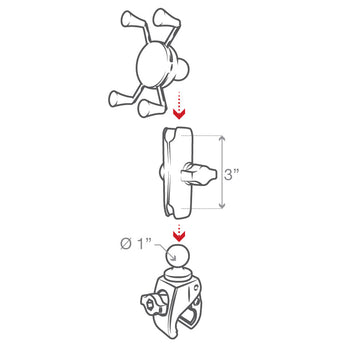

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite
Stainless steel

packaging type

Poly Bag

Weight

0.368 kg

Additional Information

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
