RAM® Tough-Claw™ Small Clamp Mount with 1/4"-20 Action Camera Adapter

Part#: RAM-B-400-A-366U
UPC:793442948978Patent Pending

£54.99 (Incl. VAT)

Variants

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

You can also order the individual component parts below.

Swipe to see more images.

Features

  • Contains 1/4"x20 threaded RAM® Tough Ball™ for attaching almost any action camera, trail camera, or security camera
  • Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Made of powder-coated, marine-grade aluminium, stainless steel, and high strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

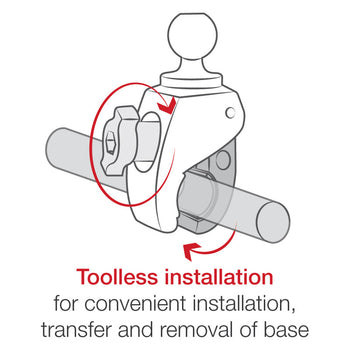

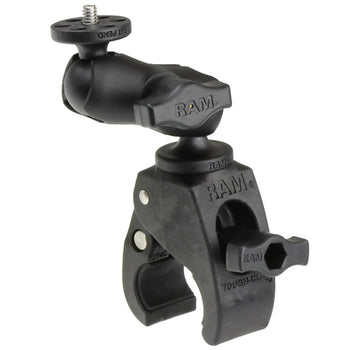

The RAM-B-400-A-366U consists of the RAM® Tough-Claw™ rail clamp base, short double socket arm and 1/4"-20 threaded ball adapter for action cameras. The RAM® Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The RAM® Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter.

Overview

clamp range

.625" - 1.14" diameter

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.253 kg
