RAM® X-Grip® with Motorcycle Handlebar Clamp Base for 7"-8" Tablets
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.

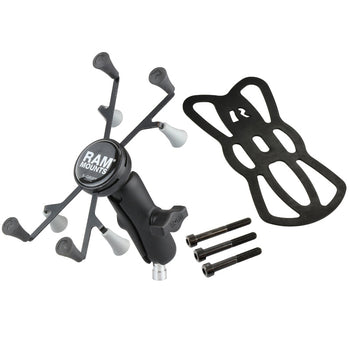

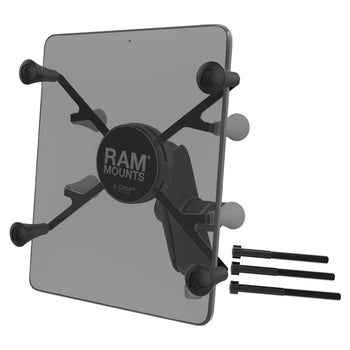

The RAM-B-367-UN7U consists of a motorcycle handlebar clamp base with M8 threads, double socket arm and universal X-Grip® cradle. This mount will replace one of the M8 bolt heads on your handlebar clamp system, positioning your device clean in the center. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Components
hardware included
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) M8 x 55mm Socket Head Cap Screw
(1) M8 x 60mm Socket Head Cap Screw
(1) M8 x 65mm Socket Head Cap Screw
holder dimensions
Width Range: 2.5" - 5.75"
Depth Range: .875" max
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.386 kg
