RAM® Offset Reservoir Cover Ball Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Fits over your motorcycle's existing brake/clutch reservoir cover; includes set of M4 x 35, M4 x 30, and M4 x 20 screws
- Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

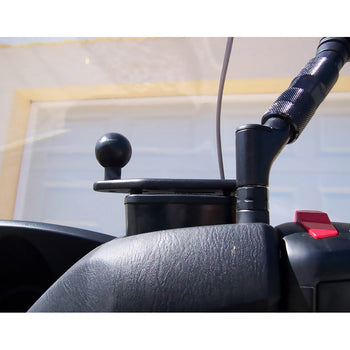

The RAM-B-346U base fits cleanly over your existing brake/clutch reservoir cover with the B size 1" rubber ball offset. Made of die cast aluminium with an overmolded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. The mount is NOT an additional reservoir cover, but instead a plate that mounts above the cover using the screw holes and longer screws of the cover. The kit includes three sets of screws of differing lengths. The center two slots are 2 7/16" center to center and are just under a .5" long. This mount is not compatible with the 2016 BMW R1200RT.
hardware included
(4) M4 x 20mm Machine Screws
(4) M4 x 30mm Machine Screws
(4) M4 x 35mm Machine Screws
(4) M4 Flat Washers
(4) .188" Nylon Spacers
hole pattern
See Drawing
plate size
See Drawing
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.124 kg
