RAM® Handlebar U-Bolt Base for Rails 0.5" to 1" in Diameter - B Size
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features

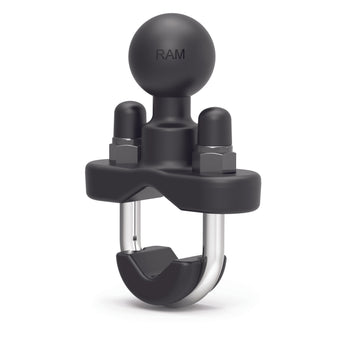

- Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
- Compatible with any B size RAM® Mounts component; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

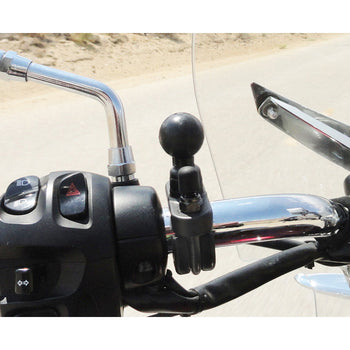

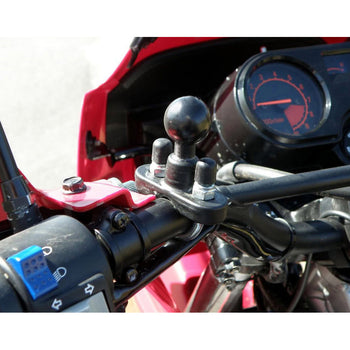

Ideal for motorcycle handlebars, the RAM-B-231ZU consists of a 1" B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from .5" to 1" in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of .5".
Components
hardware included

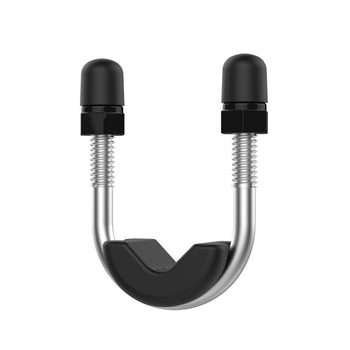

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range
.5" - 1" diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.098 kg
