RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.
Features
- Phone mount for ATV/UTVs includes standard size phone holder, rail and bar base with strap clamp and U-bolt components

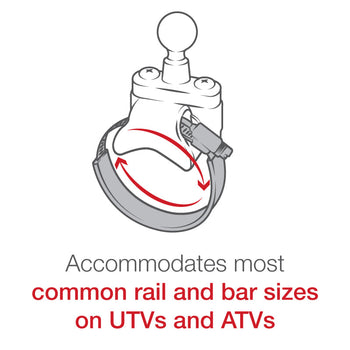

- RAM® strap mount will accommodate most common roll bar sizes on UTV and handlebar sizes on ATVs
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

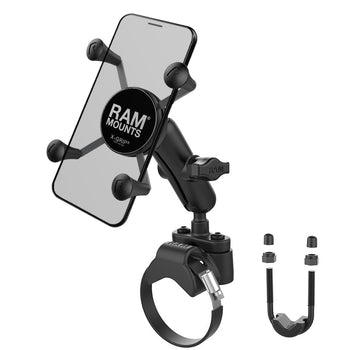

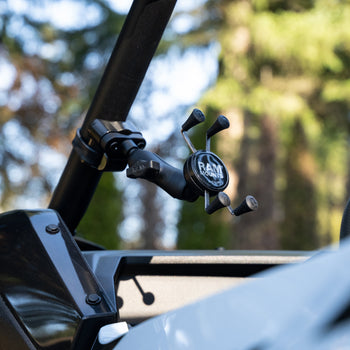

The RAM-B-231-2-UN7U consists of a steel strap base, stainless steel u-bolt base, double socket arm and universal spring loaded X-Grip® cradle for cell phones. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Components

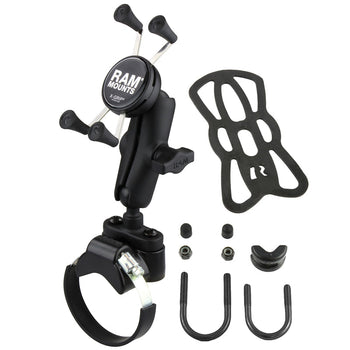

hardware included
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions
Width Range: 1.875" - 3.25"
Depth Range: .875" max
clamp range
U-Bolt: .5" - 1" diameter
Strap Clamp: 1.57" - 3.15" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
Stainless steel
packaging type
Poly Bag
Weight
0.409 kg
