RAM® Tab-Tite™ with RAM® Twist-Lock™ Pivot Suction for Toughpad FZ-A1
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.

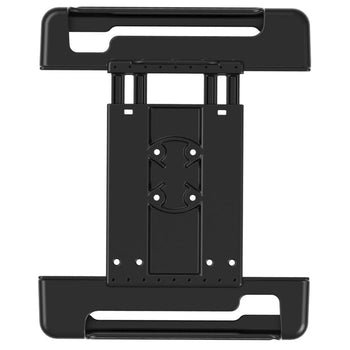

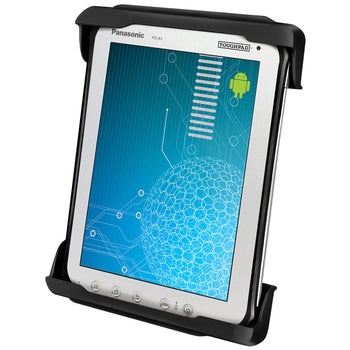

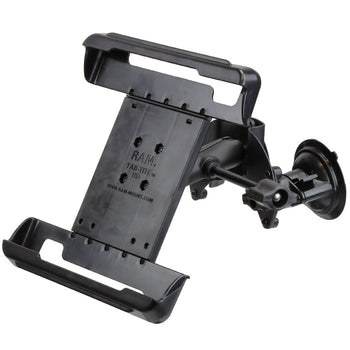

The RAM-B-189-PIV1-TAB10-ALA1_KRU consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal Tab-Tite™ cradle for 10" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Components
hardware included
Assembly Hardware
holder dimensions
Height Range: 9.75" - 12"
Width Range: 6.38" - 8.62"
Depth Range: .13" - 1"
suction size
(2) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Powder coated steel
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.93 kg
