RAM® Fork Stem Mount with RAM® Finger-Grip™ GPS/Radio Holder
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.

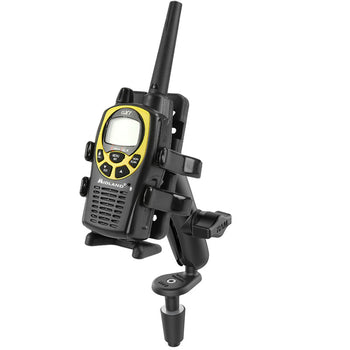

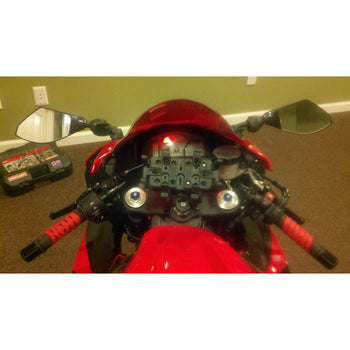

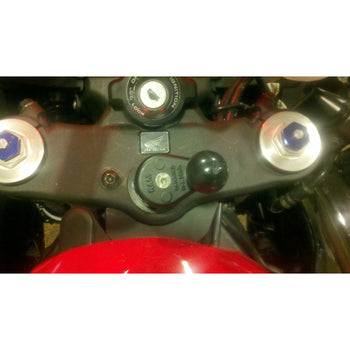

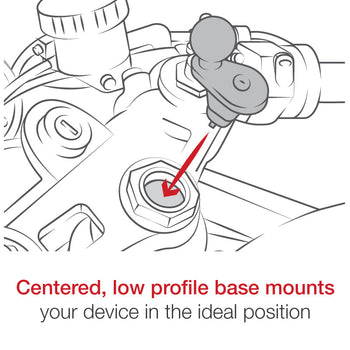

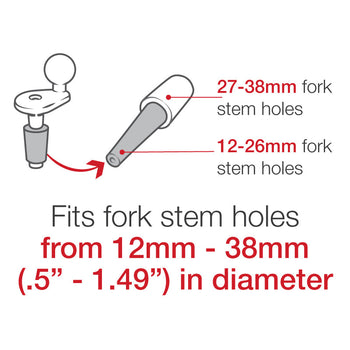

The RAM-B-176-UN4 consists of a fork stem base, double socket arm, diamond adapter base and high strength universal Finger Grip™ cradle. This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 38mm (.5” – 1.49”).

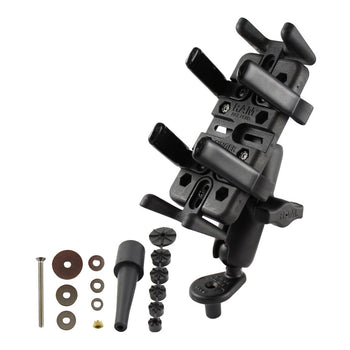

Components
hardware included
Assembly Hardware
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut
holder dimensions
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.5 kg
