RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.

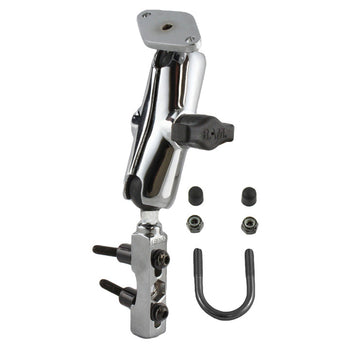

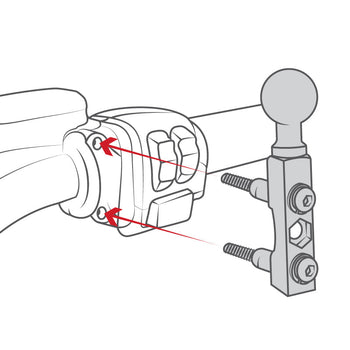

The RAM-B-174CHU consists of a chrome 1" diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1" in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
hardware included
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range
.5" - 1.25" diameter
socket to socket length
3"
hole pattern
2-Hole AMPS: 1.912"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.33 kg
