RAM® Twist-Lock™ Suction Cup Mount with Swivel Socket Arm & Sun Visor

Part#: RAM-B-166-326-VIS-G1U
UPC:793442944567Patented

£69.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

You can also order the individual component parts below.

Swipe to see more images.

Features

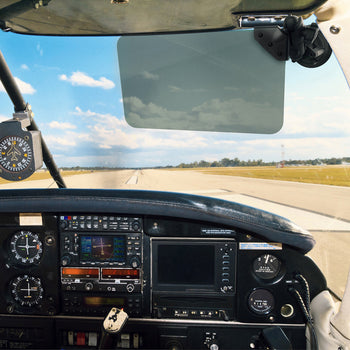

  • 13" x 8" precision laser cut sun visor blocks unwanted glare; ideal for pilots
  • Features a 50% dark grey tint
  • Includes RAM® Composite Double Socket Swivel Arm and RAM® Twist-Lock™ Suction Cup
  • Backed by a lifetime warranty*

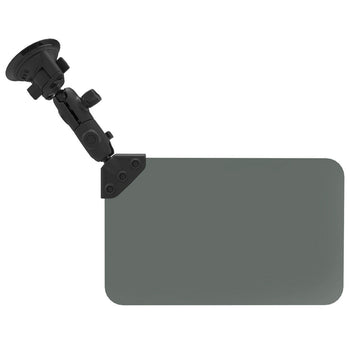

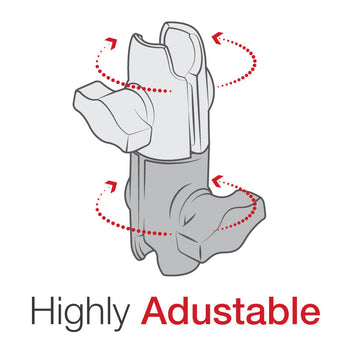

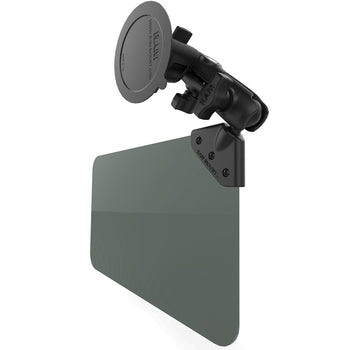

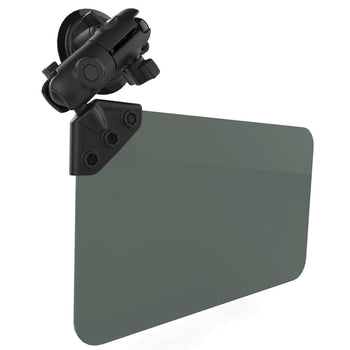

This 13" x 8" precision laser cut cast acrylic sun visor offers ideal blockage of glare while ensuring no obstruction or distortion of view. The dark grey 50% tint is ideal for blocking sun and glare in a variety of applications. The RAM-B-166-326-VIS-G1U includes a B size (1”) ball, RAM® Composite Double Socket Swivel Arm, and RAM® Twist-Lock™ Suction Cup. The double ball and socket arm with a swivel feature in the center makes adjustment simple and effortless. This mount can be easily configured for left or right handed use as well as pilot and co-pilot use.

Components

RAM® Sun Visor with Ball Adapter RAP-393-G1U £39.99

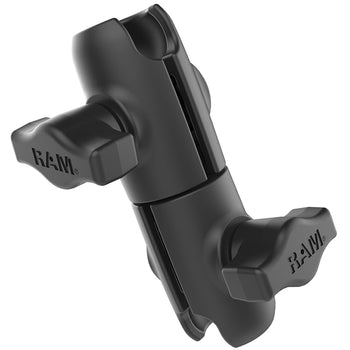

RAM® Composite Double Socket Swivel Arm RAP-B-200-12U £14.99
RAM® Twist-Lock™ Suction Cup Base with Ball RAM-B-224-1U £19.99
Overview

hardware included

Assembly Hardware

visor dimensions

8" x 13"

suction size

3.3" Diameter

socket to socket length

3.5"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite
Cast acrylic

packaging type

Poly Bag

Weight

0.591 kg

Additional Information

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
