RAM® X-Grip® Large Phone Mount with Vibe-Safe™ & U-Bolt Base - Short
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.
Features
- RAM® Vibe-Safe™ dampens a wide range of vibration frequencies
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Unique structure and thoughtfully designed with all industries in mind
- Backed by a lifetime warranty

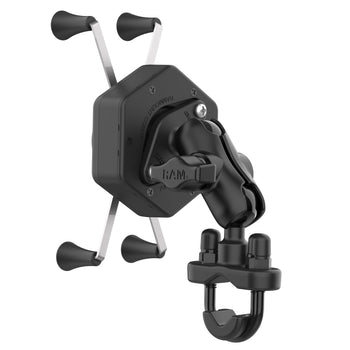

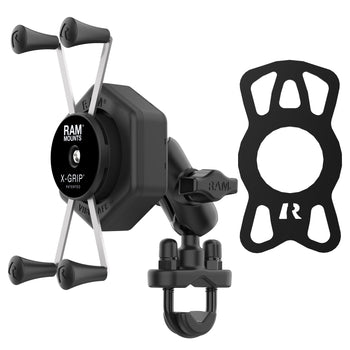

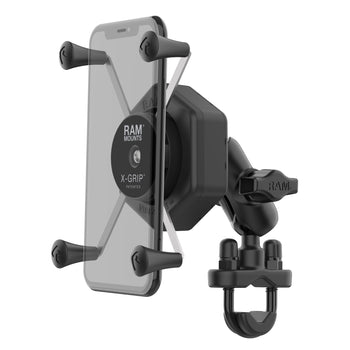

The RAM® X-Grip® Large Phone Mount with RAM® Vibe-Safe™ & U-Bolt Base - Short (RAM-B-149Z-A-UN10-462) is a combination of the RAM® X-Grip® Phone Mount with Handlebar U-Bolt Base and the RAM® Vibe-Safe™—our vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. This product comes pre-assembled with the device tether that is recommended for outdoor applications. The RAM® X-Grip® can rotate between portrait and landscape by loosening the center screw. This product comes with one (1) short B size arm and one (1) RAM® U-Bolt Base that accommodates rails from .5" - 1.25" in diameter and an optional device tether that is recommended for outdoor applications. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

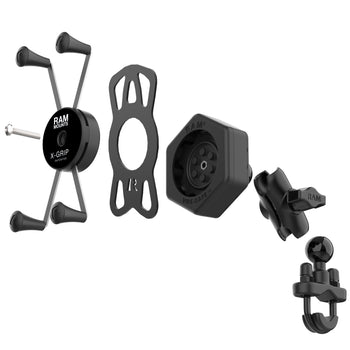

Components
hardware included
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions
Width Range: 1.75" - 4.5"
Depth Range: .875" max
clamp range
.5" - 1.25" diameter
socket to socket length
1.75"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
Stainless steel
packaging type
Retail Bag
Weight
0.451 kg
