RAM® ATV/UTV Double Ball Rail Mount with Gun Holster Clip
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.

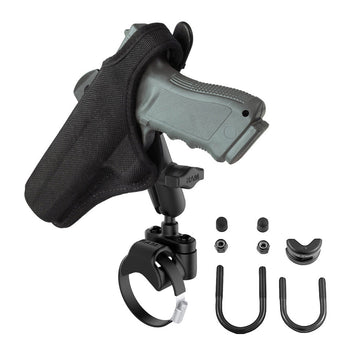

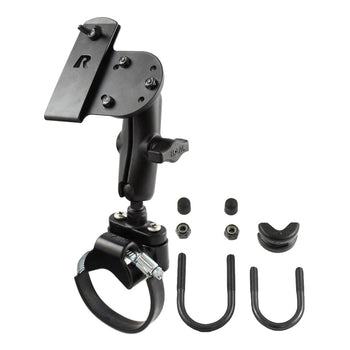

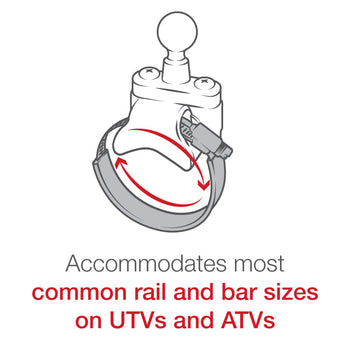

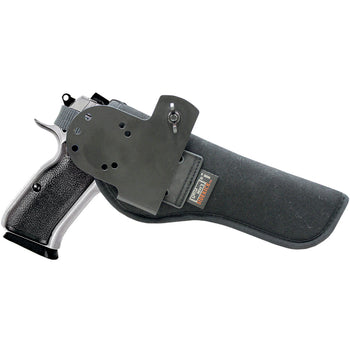

The RAM-B-149Z-2-GUN1U consists of a steel strap base, u-bolt bases, double socket arm and gun holster clip. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the double socket arm. With a twist of the arm knob, you can move the gun holster clip to your optimum viewing position. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware.
Components
hardware included
Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Powder coated steel
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.45 kg
