RAM® Pin-Lock™ Drill-Down Locking Mount for Garmin fleet 660/670
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

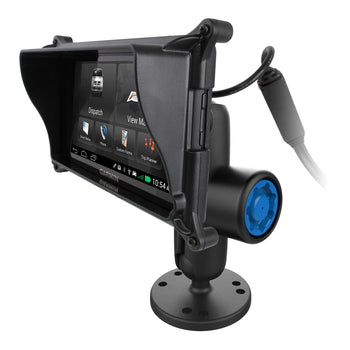

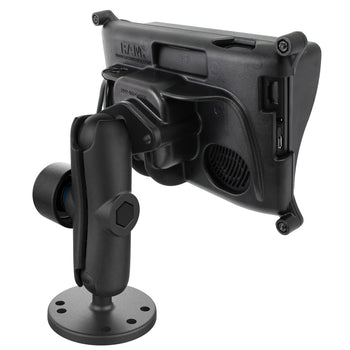

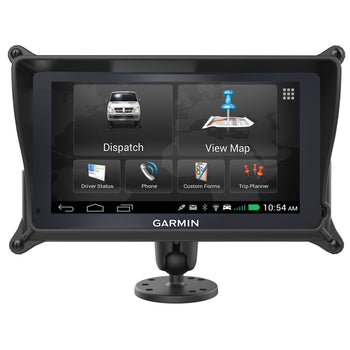

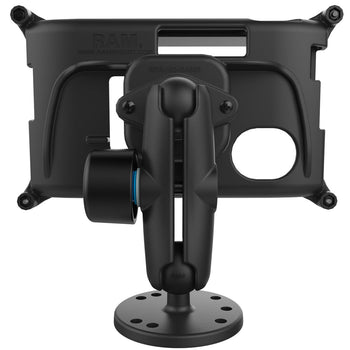

The RAM-B-138-GA66LU consists of a double socket arm, Pin-Lock™ security knob/key knob, 2.5" diameter round base with the universal AMPS hole pattern, diamond adapter base and custom high strength composite locking case for the Garmin fleet 660/670. The locking case features the ability to secure your Garmin fleet 660/670 in place adding much needed protection and enables full access to the screen, power plug, and memory card slot. The case consists of a front and back cover that can be secured together using standard pop rivets or security screws. The locking case also features a unique cable retention system that prevents accidental unplugging of the USB cable. Paired with a RAM Pin-Lock™ security knob/key knob, this solution is the ideal accessory for deterring theft or accidental removal of the mounted GPS device.
Components
hardware included
Assembly Hardware
(1) RAM Pin-Lock Security Key
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size
2.5" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.489 kg
