RAM® Tab-Tite™ Yoke Clamp Mount for iPad mini with Heavy Duty Cases
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.
Features
- Spring-loaded holder secures iPad mini (A17 Pro), mini 6 and previous mini models with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
- Yoke clamp base fits rails from .625" to 1.25" in diameter for the ideal airplane mount
- Made of powder-coated, marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

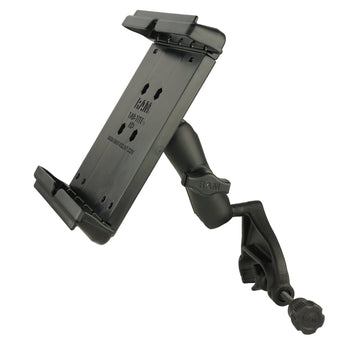

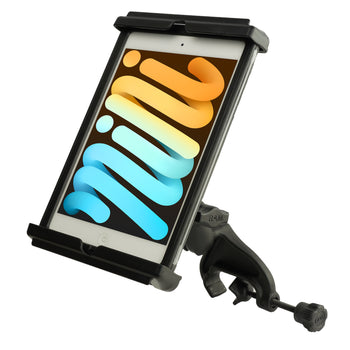

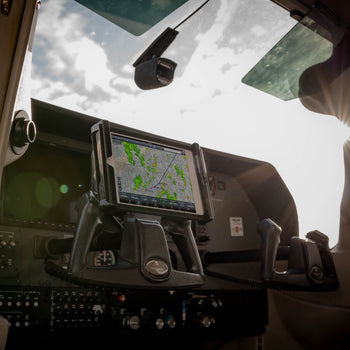

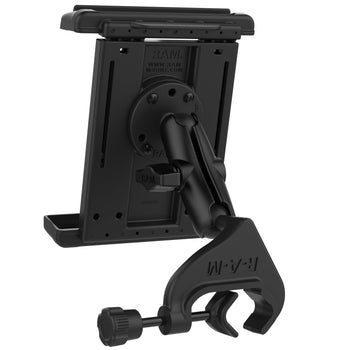

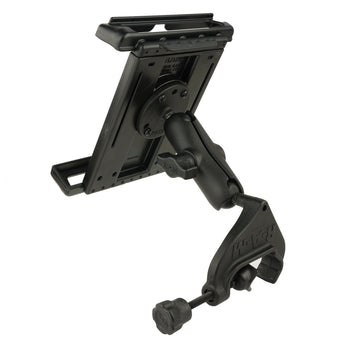

This ideal airplane yoke mount is designed specifically to hold any 8" tablet with a heavy duty case including the Apple iPad mini (A17 Pro), mini 6 as well as all previous iPad mini models, and consists of a RAM® Tab-Tite™, yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPS hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.
Components
hardware included
Assembly Hardware
holder dimensions
Height Range: 7.125" - 9.5"
Width Range: 5.06" - 5.68"
Depth Range: .13" - 1"
clamp range
.625" - 1.25"
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.65 kg
