RAM® Double Ball Hose Clamp Kit 1" - 3" with AMPS Plate - Medium
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.

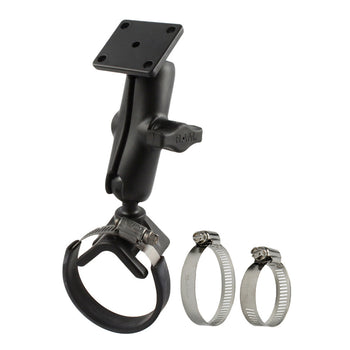

The RAM-B-108-40U consists of a medium length B size arm with a rectangular plate with universal AMPS hole pattern and a strap clamp base that is suitable for rails from 1" to 3" in diameter.
Components
hardware included
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) #40 Worm Drive Strap Clamp
(1) 6" Rubber Strip
clamp range
1" - 3" diameter
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.286 kg
