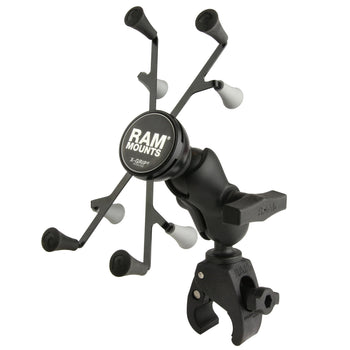

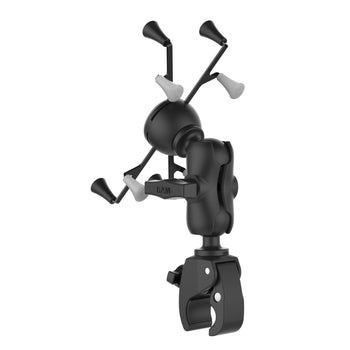

RAM® X-Grip® with Tough-Claw™ Mount for 7"-8" Tablets - C Size Short
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features

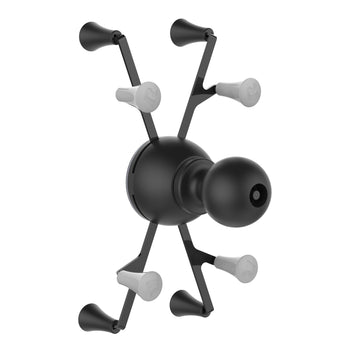

- Spring-loaded 'X' design features rubber caps and sports great holding power without hiding your tablet; fits most 7"-8" tablets (check list of compatible tablets below)

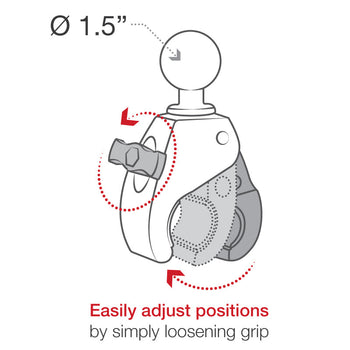

- Includes C size small RAM® Tough-Claw™ base, designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
- Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

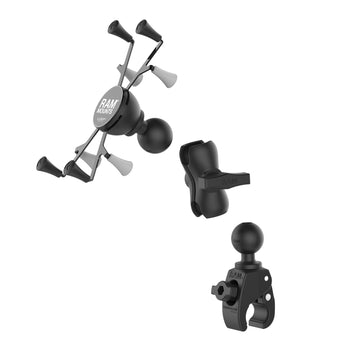

The RAM® X-Grip® with RAM® Tough-Claw™ Mount for 7"-8" Tablets consists of a short C size double socket arm, C size small RAM® Tough-Claw™ base for .625" to 1.14" diameter rails and a universal X-Grip® clamping cradle for 7"-8" tablets. The mount is designed with a C size RAM® 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for open-cockpit vehicles such as a motorcycle or ATV/UTV. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Components
hardware included

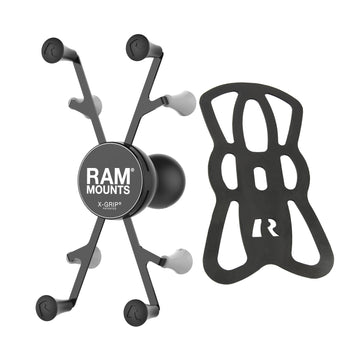

(1) Optional Tether
(1) Glue Tube for Rubber Caps
holder dimensions
Width Range: 2.5" - 5.75"
Depth Range: .875" max
clamp range
.625" - 1.14" diameter
socket to socket length
2.5"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.596 kg
