RAM® Ball Adapter with 2.5" Long 1/4"-20 Threaded Stud
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.

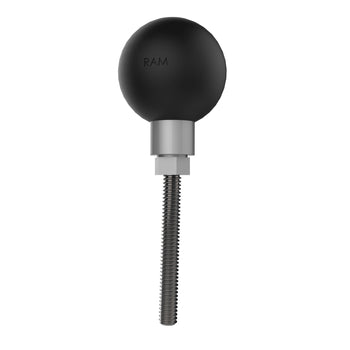

The RAM-273U consists of a C size 1.5" rubber ball with a hex post and 1/4"-20 x 1.75" stainless steel threaded stud. This component can mount to any surface with a 1/4"-20 hole, and the ball is compatible with any C size socket arms.
Components
hardware included
(1) 1/4"-20 x 1.75" Threaded Stud
thread pitch
1/4"-20 x 1.75"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
Stainless steel
packaging type
Poly Bag
Weight
0.077 kg
