RAM® Tough-Dock™ with Dual RF for Panasonic Toughbook® CF-28 - CF-31
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.

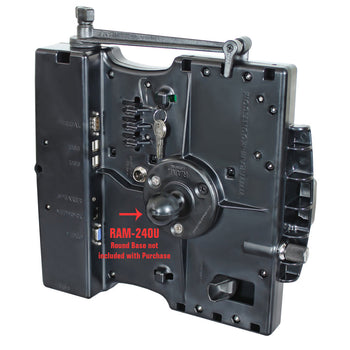

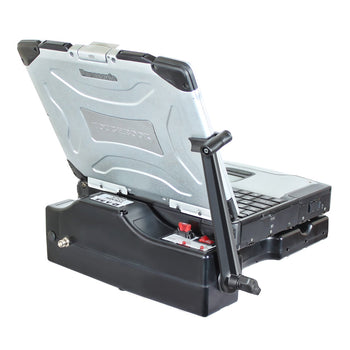

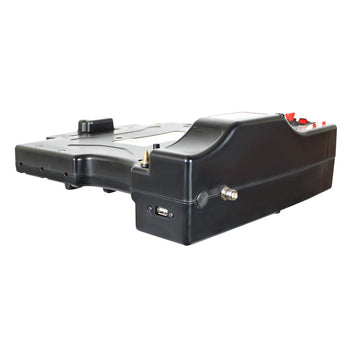

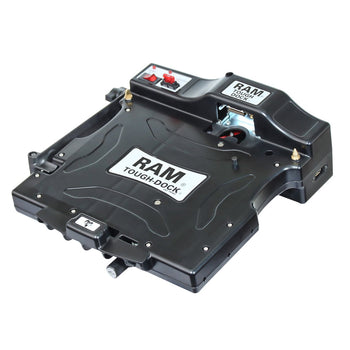

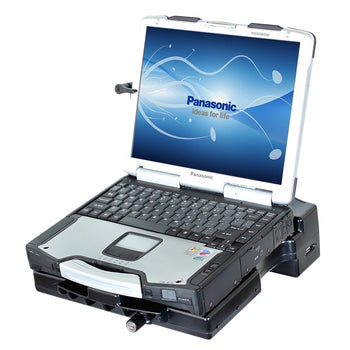

RAM Tough-Dock™ Powered Docking Station with Port Replication and DUAL RF PASS THROUGH for Panasonic Toughbook® CF-28, CF-29, CF-30 and CF-31 Rugged Laptops.
materials
High strength composite
packaging type
Box
input voltage
12-30VDC
ports
(1) RJ45 LAN
(1) DC Input
(5) USB 2.0
(1) VGA Output
(1) DB9 Serial Connection
(1) Speaker Out
certifications
Overcurrent/Surge Protection
Reverse Polarity Protection
Radio Frequency Isolation
Dual RF Pass Through
Warranty
3 year warranty
Weight
3.152 kg
