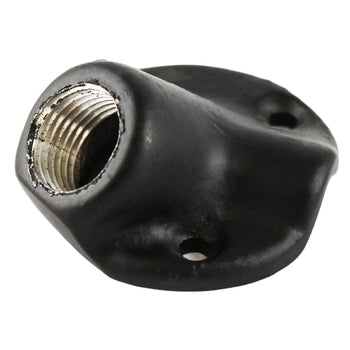

RAM® 45-Degree 1/2" NPT Threaded Hole with Round Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Features
- 2.5" diameter base with 1/2" NPT female thread connects to any 1/2" NPT male threaded post or attachment at a 45-degree angle
- Base has shallow tunnel opening for threading cables through
- Compatible with RAM® 1/2" NPT Male Threaded Pipes
- 3-hole 120-degre mounting pattern for drill-down mounting
- Backed by a lifetime warranty
The RAM-232-45U consists of a 2.5" diameter base with 1/2" NPT female thread at a 45 degree angle to the base. This part connects to any 1/2" NPT male thread, including the RAM-PA82XX rigid arm series.
hole pattern
3-Hole 120-Degree: 1.812" Diameter
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.073 kg
