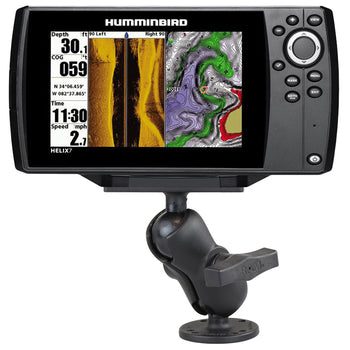

RAM® Drill-Down Double Ball Mount for Humminbird Helix 7 - Short
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.

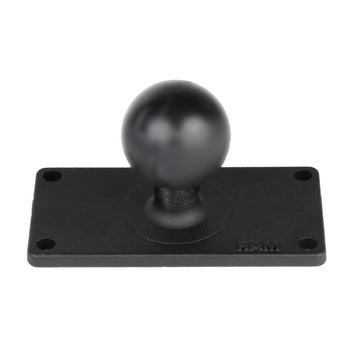

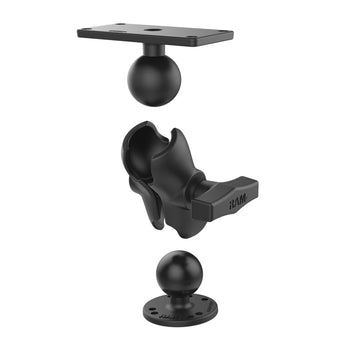

The RAM-202-24-B-202U, powder coated marine grade aluminium mount, consists of a short double socket arm mount, one round 2.5" diameter round base with the universal AMPS hole pattern and one 2" x 4" rectangular base. The unique rubber ball and socket technology dampens shock and vibration while offering high adjustability to achieve the perfect viewing angle.
Components
product dimensions
Overall Height: 5.225"
socket to socket length
2.5"
hole pattern
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter

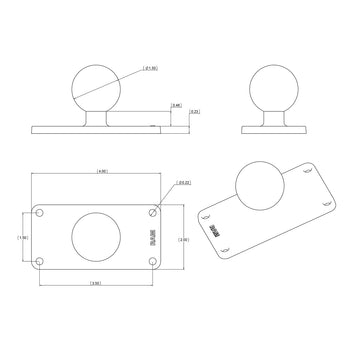

Rectangular Plate: 1.5" x 3.5"
plate size
Top Plate: 2" x 4"
Bottom Plate: 2.5" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.461 kg
