RAM® Universal Marine Electronic Mount - C Size Long
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Complete flat surface, drill-down mounting solution with an overall height of 10.68"
- Includes C size long socket arm, 2.5" diameter flat surface drill-down base, and a 6.25" x 2" marine electronic adapter for fishfinders depthfinders and more; RAM® Mounts ball and socket technology allows for near-infinite adjustability

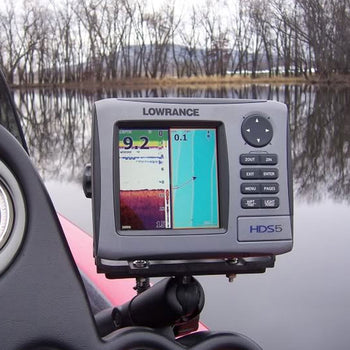

- Compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
- Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty

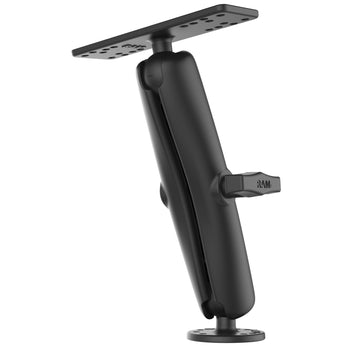

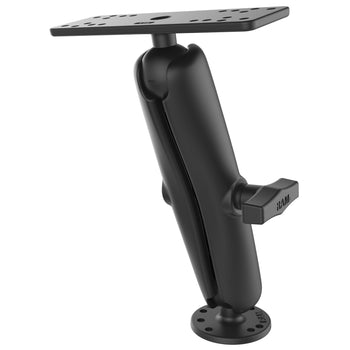

The RAM-111U-D consists of a 2.5" diameter round base that contains the universal AMPS hole pattern, 9 inch double socket arm and 6.25" x 2" rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Components
product dimensions
Overall Height: 10.85"
socket to socket length
8"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

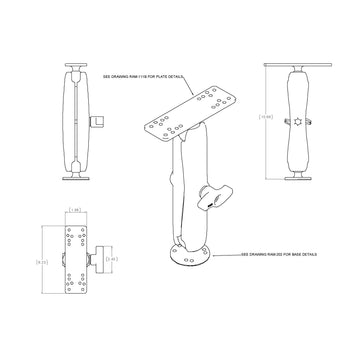

See Drawing
plate size
Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
1.046 kg
