RAM® Universal Marine Electronic Mount for Square Posts up to 3" Wide
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.

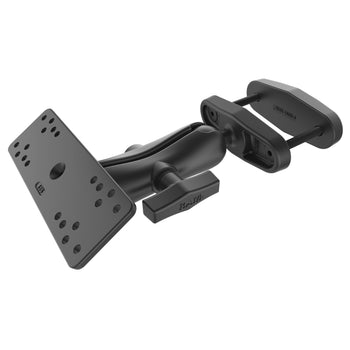

The RAM-111-247-2U with clamp base, consists of the 1.5 inch diameter ball and socket system with RAM universal rectangular 6.25 x 2 inch base. This mount is designed to be a universal mounting solution for large and heavy electronic devices, including GPS, CB Radios, Ham Radios and more. The hole pattern found on the rectangular base will connect to a large variety of third party cradle, gimbal brackets and mounts. The mounting base is a perfect solution for mounting to the cabin frame work on a forklift, or any other square post up to 3 inches square.
Components
hardware included
(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts
clamp range
3" max width
socket to socket length
4.66"
hole pattern
See Drawing
plate size
6.25" x 2"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.723 kg
