RAM® Vertical 6" Swing Arm Mount with Fixed Socket Arm
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.

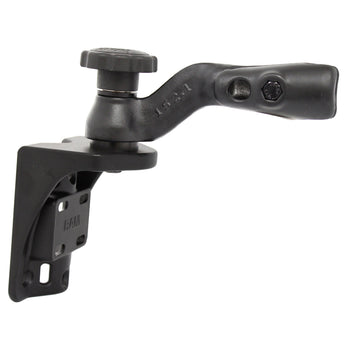

The RAM-109V-4U consists of a 6" long curved swing arm with open socket and vertical surface mounting base. There are two (2) pivoting points on the mount: one at the swing arm and base and one at the center of the open single socket. Each pivoting point allows a complete 360 degree rotation. The open socket will accommodate all RAM 1.5" diameter ball component parts.
Components
product dimensions
Overall Height: 8.45"
Total Swing Arm Length: 6"
hole pattern
See Drawing
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
1.0 kg
