RAM® Pedestal Mount with 9" Pipe and 75x75mm VESA Plate
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
![A chart of ball sizes](http://www.ram-mount.co.uk/cdn/shop/files/ball-arm-spec.jpg?v=1720434415&width=1200)
![](http://www.ram-mount.co.uk/cdn/shop/files/ball-arm-spec-vertical.jpg?v=1720613989&width=600)

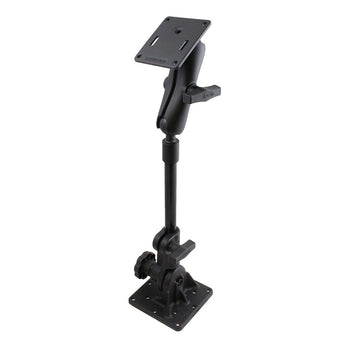

The RAM-101U-VE12-9 consists of a 9" long aluminium pipe with medium length C size double socket arm, a drill-down pedistal base, and a 75mm x 75mm VESA plate.
socket to socket length
4.66"
hole pattern
75 x 75mm VESA
plate size
3.625" x 3.625"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
1.69 kg
