RAM® Standard Bracket Adapter for Speakers & Microphones
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

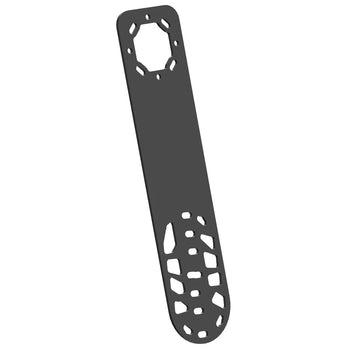

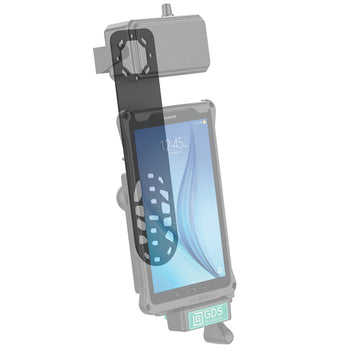

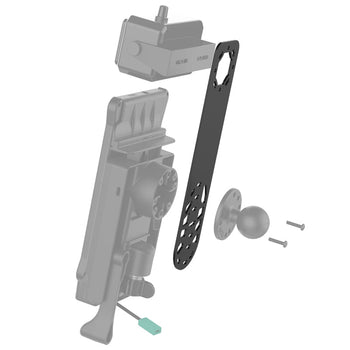

Attach a speaker or microphone to your RAM® Tab-Tite™ or RAM® Tab-Lock™ cradle with the RAM® Speaker/Microphone Bracket. Simply install the bracket between the cradle and the ball base – two screws are included for attaching the bracket to any RAM® Tab-Lock™ cradle. Compatible with speakers, microphones and accessories that use the common AMPS hole pattern, the bracket features four spaced AMPS hole pattern sets that allow for various mounting heights. Also included is a vertical and horizontal set of holes for attaching a diamond base. Measuring 10.81" in length, this bracket supports both portrait and landscape placement.
hardware included
(2) #8 x 3/4" Sheet Metal Screws
(4) #8-32 x 3/4" Machine Screws
(2) #8-32 x 3/8" Machine Screws
(2) #8-32 Nylock Nuts
(2) M4 x 35mm Machine Screws
(2) M4 Nylock Nuts
product dimensions
Overall Length: 10.81"
hole pattern
See Drawing
materials
Powder coated steel
packaging type
Poly Bag
Weight
0.314 kg
