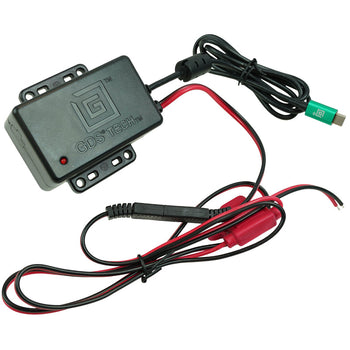

GDS® Hardwire Male USB Type-C (12VDC Output) Power Delivery Charger
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Features
- Hardwire charger includes USB Type-C male connection with input of 12-24VDC and output of 12VDC @ 2A max (supports USB PD3.0 and PPS)
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
The GDS® Modular Hardwire Charger with USB Type-C Male Connector is the ideal solution for providing power to any Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Hub™ delivers Type-C power to your device. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing the new GDS® Hub™. Always Protected. Always Connected.®
packaging type
Poly Bag
input voltage
12-24VDC
output voltage
12VDC @ 2A (supports USB PD3.0 and PPS)
power output
37.5W Total
output current
3A max
input connector
Male USB Type-C
input cable length
1.2 Meters including 2 Pole Flat Marine Connector
output cable length
1 Meter
operating temperature
-20°C to +70°C
storage temperature
-40°C to +85°C
regulatory
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
certifications
FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support
Warranty
3 year warranty
Weight
0.205 kg
