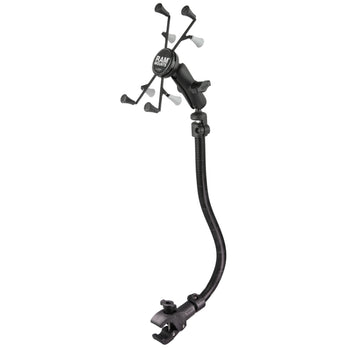

RAM® X-Grip® Wheelchair Leg Rail Mount for 7"-8" Tablets
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

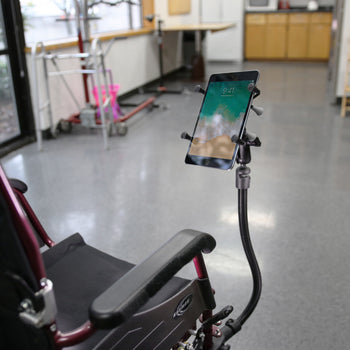

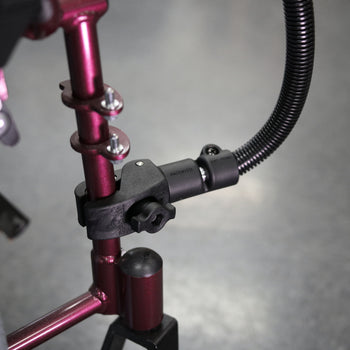

Designed for use with the seat and leg rails on popular wheelchair brands, this kit includes a small RAM® Tough-Claw™ clamp base connected to an 18” RAM® Flex-Rod™ and medium double socket arm. The RAM® Tough-Claw™ can be clamped to 0.625" - 1.14" diameter rails. Attach the included RAM® X-Grip® tablet mount for use with 7”-8” tablets. The spring-loaded RAM® X-Grip® provides a perfect fit for your tablet and can be easily adjusted to the ideal position.
Components
hardware included
Assembly Hardware
(1) Optional Tether
(1) Glue Tube For Rubber Caps
holder dimensions
Width Range: 2.5" - 5.75"
Depth Range: .875" max
clamp range
.625" - 1.14" diameter
socket to socket length
Medium Arm: 3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Retail Bag
Weight
0.723 kg
