RAM® Tough-Track™ - 9" Track for 1 3/4" - 2" Rails
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features
- 9" of usable high strength composite track for track mounts: overall length of 12"
- RAM® Tough-Track™ utilizes u-bolt hardware for 1.75"-2" diameter rails; ideal for rails, tubes, roll cages and grab bars
- Compatible with B and C size RAM® track bases to attach action camera mounts, fishing rods, phone mounts, tablet mounts and more
- Backed by a lifetime warranty

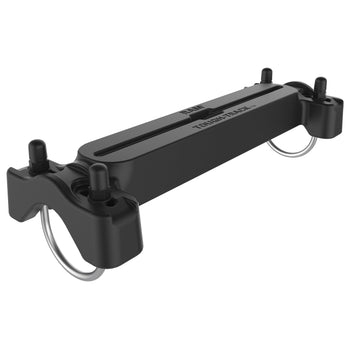

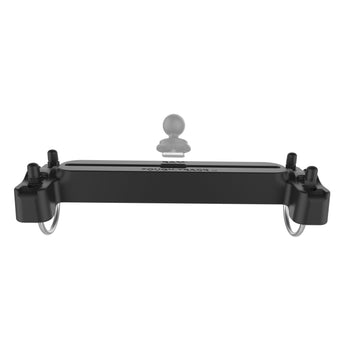

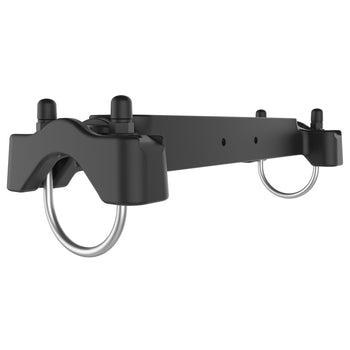

With the RAM® Tough-Track™ for tubes, bars, and rails, create an ideal track mounting surface compatible with a wide variety of RAM® Track Ball™ mounts and components. This 12” RAM® Tough-Track™ features a two-hole AMPS hole pattern on the side for attaching a RAM® diamond base. All necessary U-bolt hardware is included to attach the RAM® Tough-Track™ to 1 ¾” and 2” tubes, bars, and rails. Hardware for attaching to a 2 ¼” or 2 5/8” tube, bar, or rail is available separately. Other options for attaching to irregular shaped rails include RAM® strap clamp mounts.

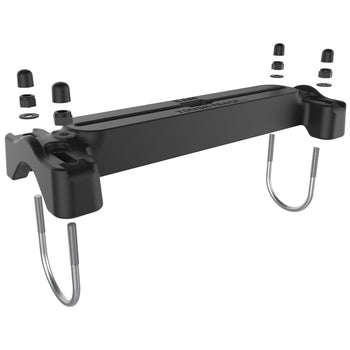

Components
hardware included

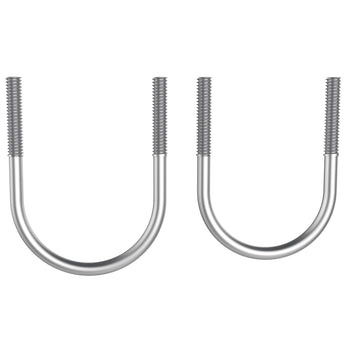

(2) 1/4"-20 U-Bolts for 1.75"Rails
(2) 1/4"-20 U-Bolts for 1.75" - 2" Rails
(4) #12 Stainless Steel Flat Washers
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
product dimensions
Inside Track Length: 9"
clamp range
1.75" - 2" diameter
materials
High strength composite
packaging type
Poly Bag
Weight
0.414 kg
