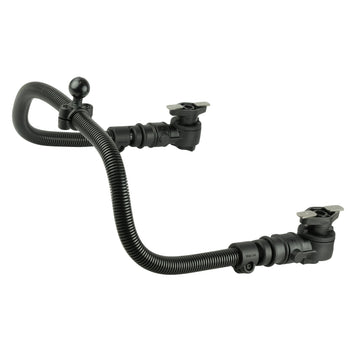

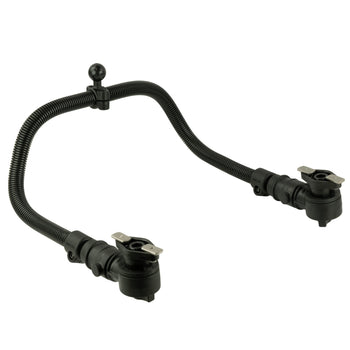

RAM® Rugged Quick Release Wheelchair 2-Point Base with Ball
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features
- Ultra-stable mounting system that can be easily disconnected and swapped with other mounting components with the simple push of a button
- Two RAM® Adapt-A-Post™ receivers connect to either both wheelchair armrests or both seat tracks; 30” flex rod can be configured to any desirable position, with posts to click into both receivers
- Ideal for steady camera mounting and positioning tablets front & center for convenient viewing; included RAM® Torque™ Base can be positioned anywhere along the rod to support any ball & socket mounting system for phones, cameras, tablets, and more
- Backed by a lifetime warranty

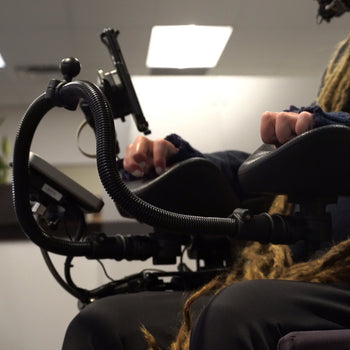

The RAM® Rugged Quick Release Wheelchair 2-Point Base with Ball is the first product in our new collection of User-Inspired Kits. Developed in collaboration with Ian Mackay, Guinness World Record holder and longtime friend to RAM®, this ultra-stable mounting system includes two RAM® Adapt-A-Post™ receivers and a 30" flex rod that connects to either both of the wheelchair's armrests or seat tracks and can then be configured to any position. When connected, both ends of the 30" rod braces the arm rests, keep the entire mount stable and ultra-rugged for on-the-go use, all while offering an intuitive, quick-disconnect feature. Whether you want to mount a single tablet front and center or a combination of devices, this is the ideal solution for convenient viewing.

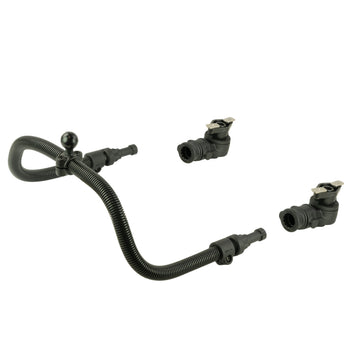

Components
hardware included
(4) #10-32 T-Nuts
(4) #10-32 Flat Weld Nuts
(4) #10-32 x 7/16" Machine Screws
(4) #8-32 x 3/4" Machine Screws
(4) #8-32 Nylock Nuts
(4) #8 Washers
t bolt dimensions
Large: .48" x .95"
Small: .375" x .593"
hole pattern
2-Hole AMPS: 1.912"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.741 kg
